Free Shipping on orders $250 or more (except LTL shipments)



Product Features:

  • Dial-in flawless perpendicular seams (mitered or butt joints) for waterfall installs
  • Precise lifting eliminates the struggle with shims

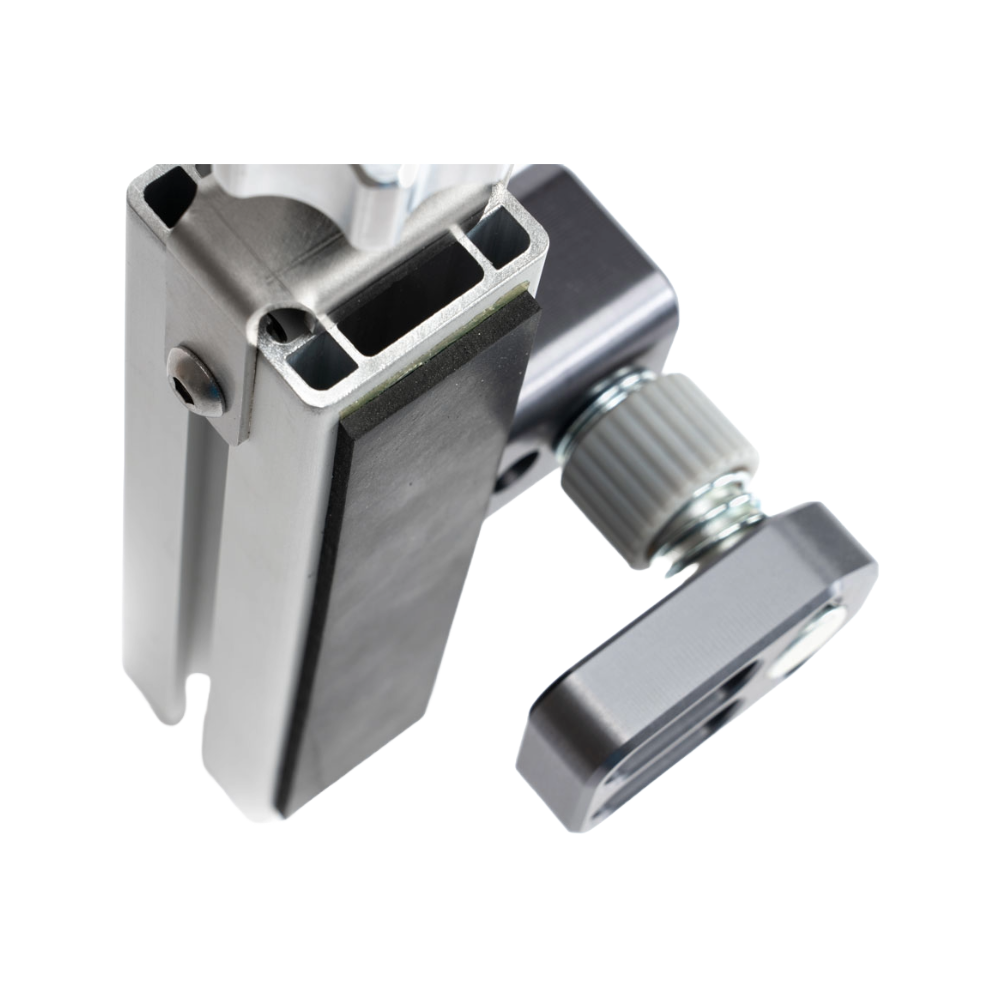

  • Rubber bumpers on the clamps protect finished edges.
  • Clamp foot can be rotated away to accommodate thicker edges and returns.
  • Pair with Kung Fu Tape™ to secure the waterfall piece and tighten the seam.
  • Load Capacity of 300 lb (136 kg) per pair
  • Clamping range: 14 mm – 50 mm (0.55 in. – 1.97 in.)
  • Click here to shop all Omnicubed products


SKU: WJ-109-23

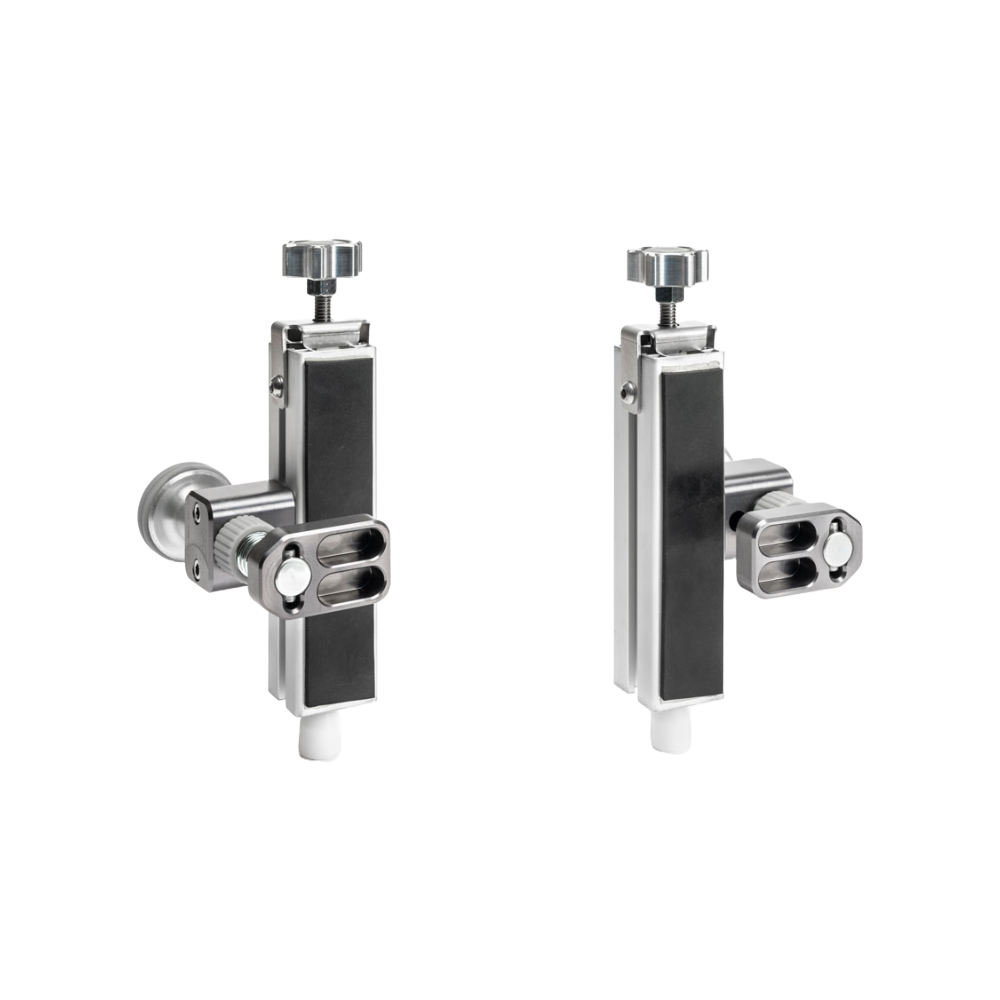

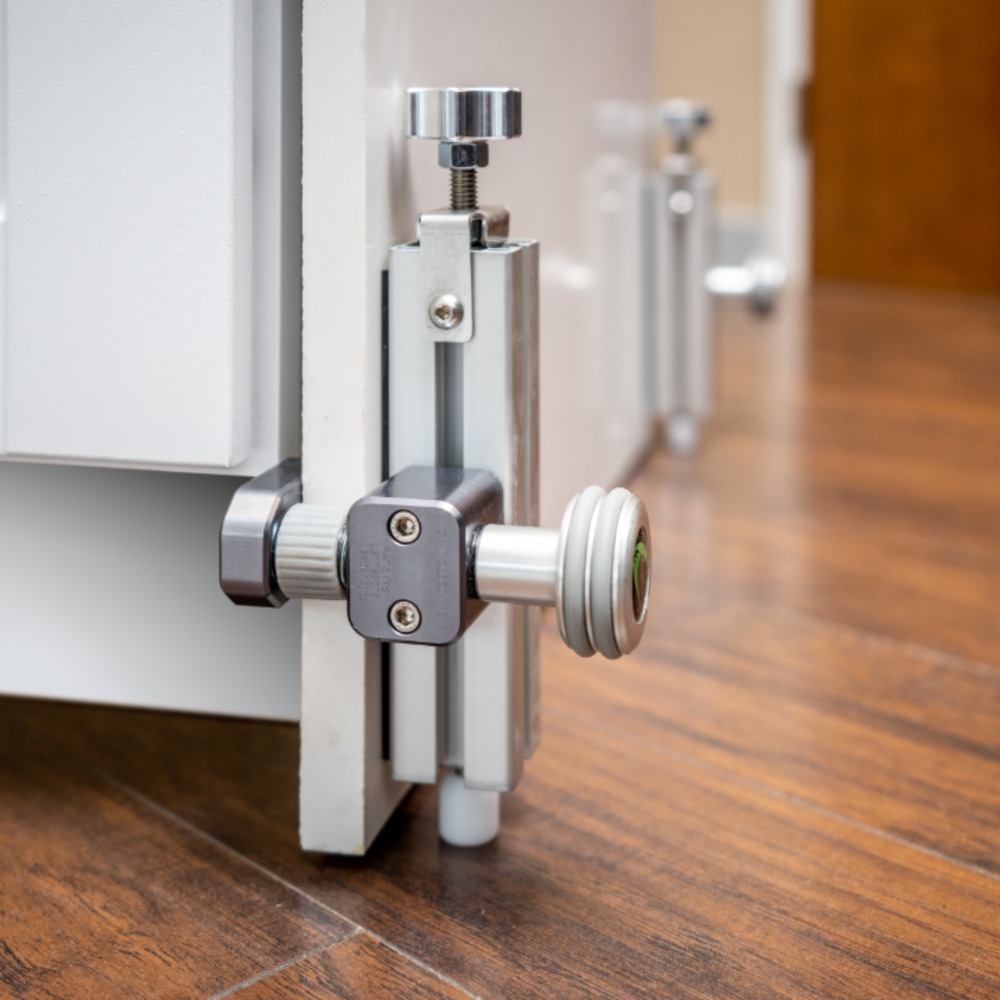

The Waterfall Jack™ is the ideal tool for quickly installing the perfect waterfall edge with minimal effort. This simple, yet innovative lifting tool eliminates the time-consuming struggle with shims that is experienced on a typical install.  Attach the built-in clamps to both sides of the waterfall edge and then adjust the top knobs to “dial in” and hold the stone at the perfect height and angle while the epoxy cures… It’s that easy! The Waterfall Jack™ is fast, easy, and offers greater precision and reliability than shims. Use in conjunction with the included roll of Kung Fu Tape™ for a tight and even waterfall seam every time.

Product Name Waterfall Jack
Patents Applicable Patents
Part # WJ-109-23
MSRP $450.00 USD, $630.00 CAD

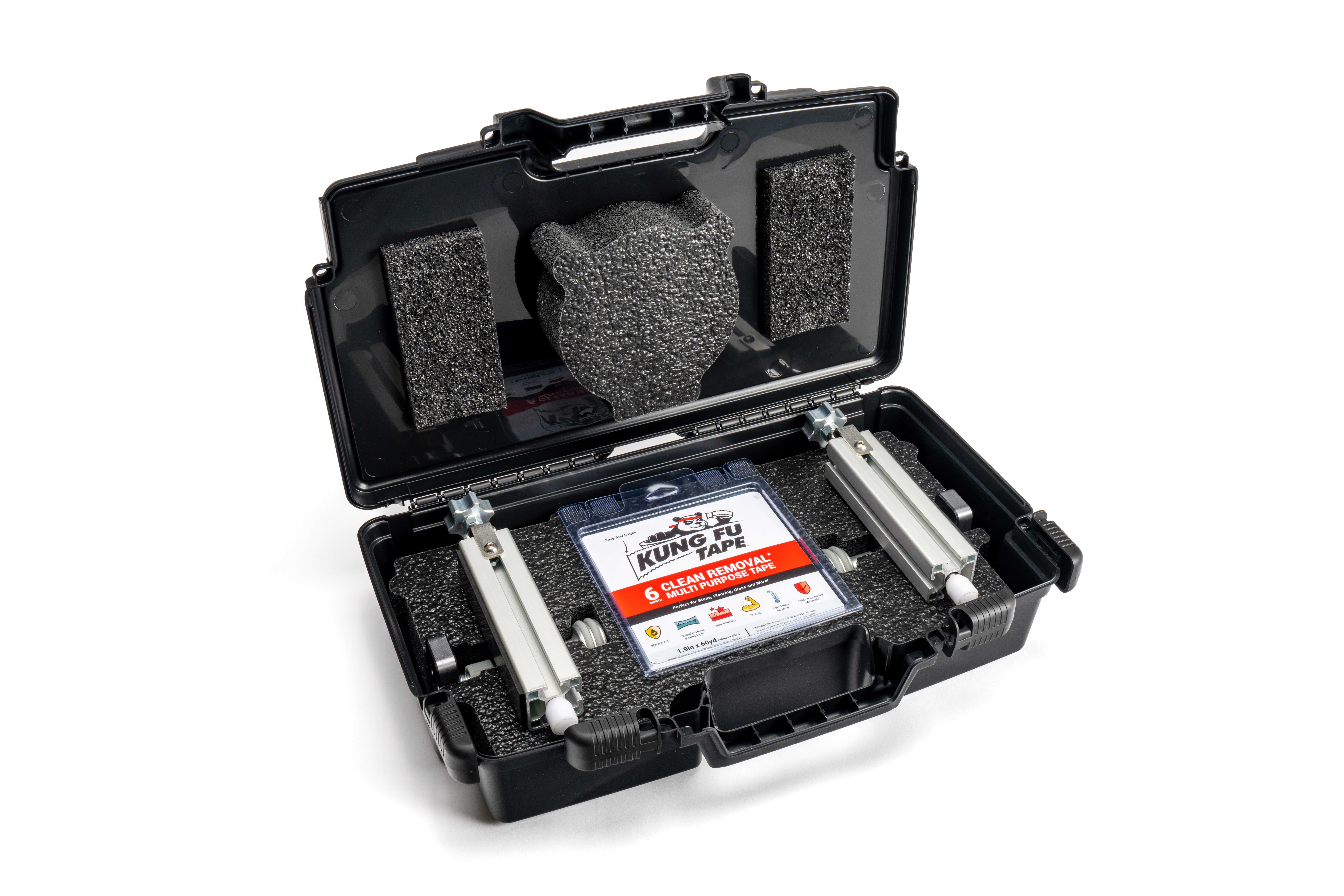

Includes Two Waterfall Jack™ units  and one 60 yd roll of Kung Fu Tape™
Product Dimensions 20” x 12.3” x 4.4” (all components in case)
Product Weight 7.7 lb (all components in case)
Package Dimensions 21” x 15” x 7”
Shipping Weight 9.2 lb
Load Capacity 300 lb (136 kg) per pair
Clamping Range 14 mm – 50 mm (0.55 in. – 1.97 in.)
Materials Anodized aluminum, stainless steel, silicone, zinc plated steel, non-marking hard rubber on rail & polyethylene vinyl tape with synthetic rubber
Weight 9.2 lbs
Dimensions 21 × 15 × 7.7 in
