Key Features & Benefits: DiSTAR BUTTERFLY 2″ DIAMOND CUTTING BLADE
ULTRA-THIN 0.6MM DIAMOND EDGE – Creates an exceptionally narrow kerf for clean, precise porcelain and ceramic tile cuts.
SOLID DIAMOND LAYER – Unlike conventional electroplated discs, the Butterfly uses a solid diamond cutting layer designed for excellent durability and consistent performance.
45MM PRECISION BLADE – Compact size provides exceptional maneuverability for detailed cuts, small openings and tight areas.
EXCEPTIONAL EDGE QUALITY – Designed to produce clean cuts with minimal material removal when working with porcelain stoneware.
HIGH-RIGIDITY DESIGN – Helps resist blade deflection for greater control and accuracy during delicate cutting.
MADE FOR DETAIL WORK – Excellent for flush plates, access openings, hatches, covers, decorative work and intricate porcelain fabrication.
WET CUTTING – Designed to be used with water cooling for optimal blade performance and life.
PROFESSIONAL DISTAR TOOLING – Built for professional tile installers and fabricators who demand precision from small-diameter diamond tooling.

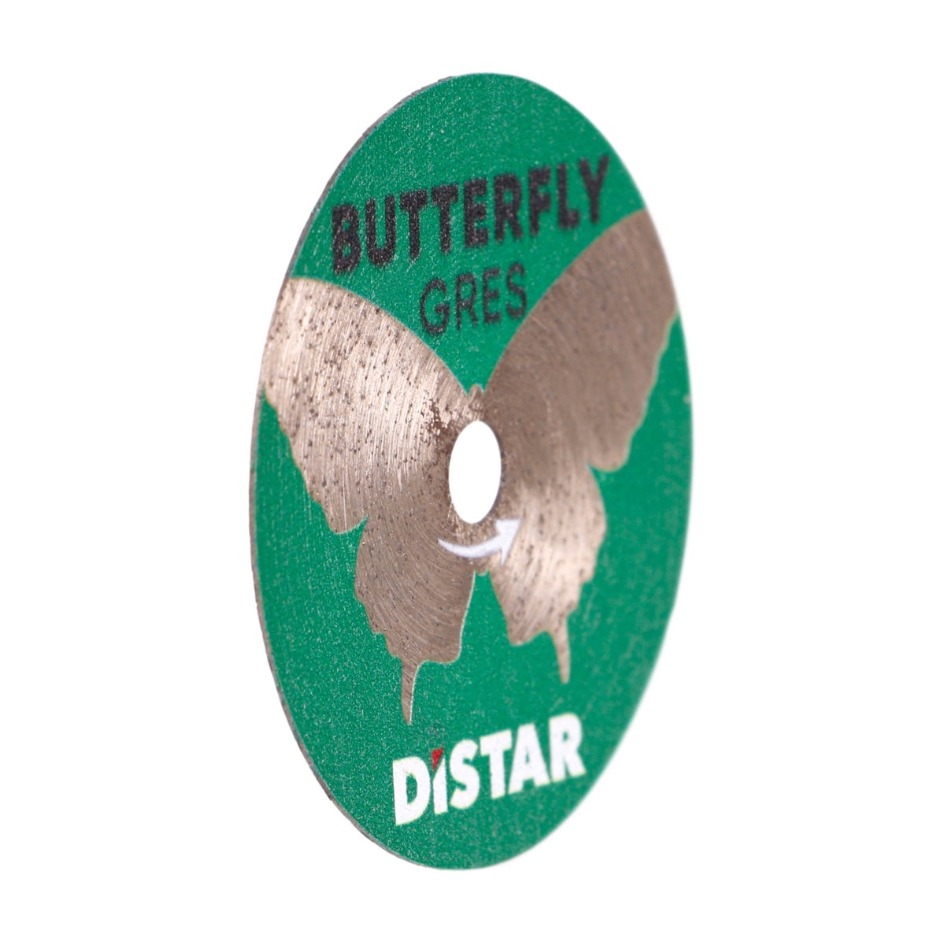

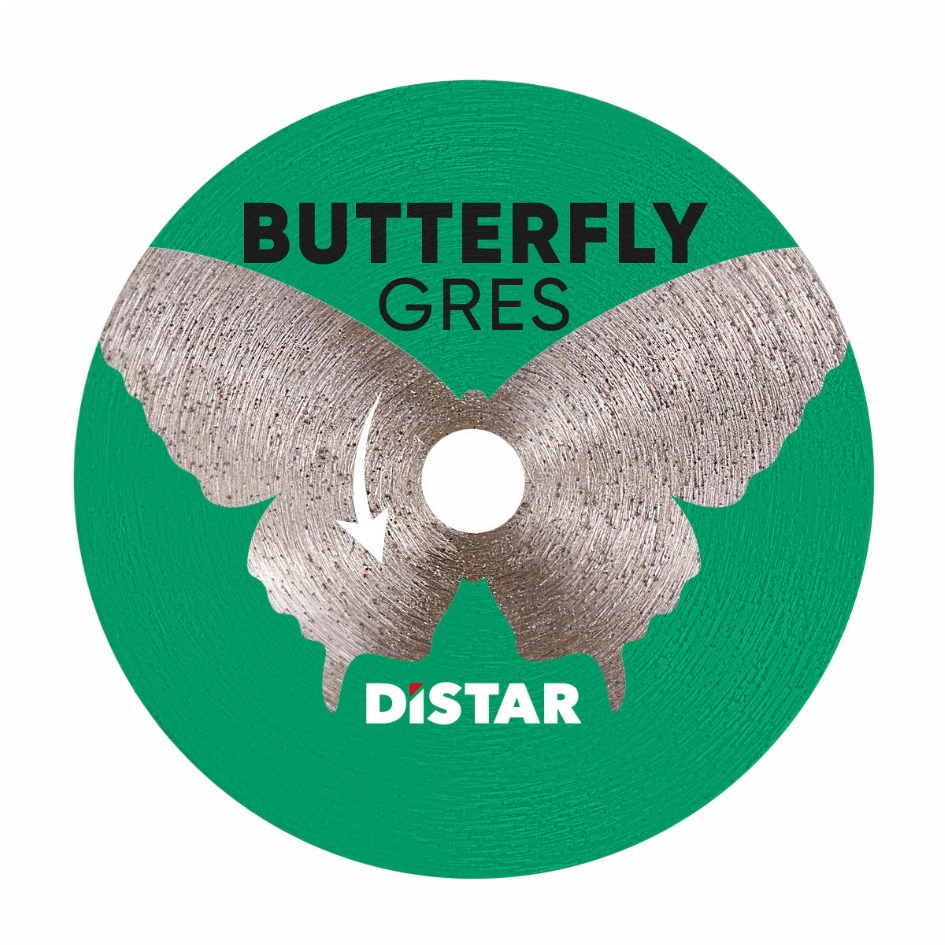

The DISTAR Butterfly 45mm Diamond Blade is one of the most precise small-diameter porcelain cutting blades available for professional tile installation and fabrication. Designed for detailed work where a standard 4″ or 5″ diamond blade is simply too large, the Butterfly gives installers exceptional control when making small openings, inside cuts, detailed trimming and precision porcelain cutouts.
What separates the Butterfly from conventional small electroplated blades is its solid 0.6mm diamond cutting layer. The extremely thin cutting edge creates a narrow kerf with minimal material removal, while the blade’s high rigidity helps prevent unwanted deflection during delicate cuts.
The compact 45mm (1.77″) diameter also makes the Butterfly extremely maneuverable. It’s an excellent choice for cutting around flush plates, access panels, inspection hatches, covers, niches, fixtures and other detailed porcelain applications.
COMPLETE YOUR PRECISION PORCELAIN CUTTING SYSTEM
Pair the DISTAR Butterfly with the DISTAR CordSET Diamond Wire Radius Cutting Kit for even greater control over detailed porcelain openings.
Use the Butterfly to make the primary cuts, then use CordSET to create precise 3mm, 6mm or 12mm radii and inside corners.
For installers regularly performing detailed porcelain fabrication, the Butterfly + CordSET combination provides a powerful system for cuts that conventional tile blades struggle to achieve.
ABOUT THE DISTAR BUTTERFLY
The DISTAR Butterfly 45mm Diamond Blade is designed for extremely precise cutting of porcelain tile, porcelain stoneware, and ceramic. Its compact 45mm diameter and ultra-thin 0.6mm diamond layer give the blade excellent maneuverability while producing a very narrow, clean cut. DISTAR specifically positions the Butterfly for delicate work where edge quality and control matter more than aggressive material removal.
WHY THE BUTTERFLY IS DIFFERENT
Unlike a conventional electroplated blade, the Butterfly uses a solid, uniform diamond-bearing layer. DISTAR states that this construction provides higher rigidity, stable cutting performance, and longer-lasting performance while helping the blade resist wandering during precision cuts.
Its small diameter makes it especially effective for:
Detailed porcelain cutouts
Outlet and fixture openings
Corners and tight-radius work
Decorative tile fabrication
Covers, hatches and small precision components
Fine trimming where a full-size grinder is difficult to control
DISTAR describes the blade as capable of “jeweler-level” precision and rates the 0.6mm Butterfly at the highest level for edge quality and lifetime, with slightly lower but still strong cutting speed.
DESIGNED FOR WATER-COOLED CUTTING
The Butterfly is intended to be used with water supply/cooling when processing porcelain stoneware. Water helps control heat at the cutting edge and supports the clean, stable cutting performance the blade is designed for.
That makes it an excellent match for your PROXXON LWB/A + Water Guard + Hydro Tank setup.
TECHNICAL DATA

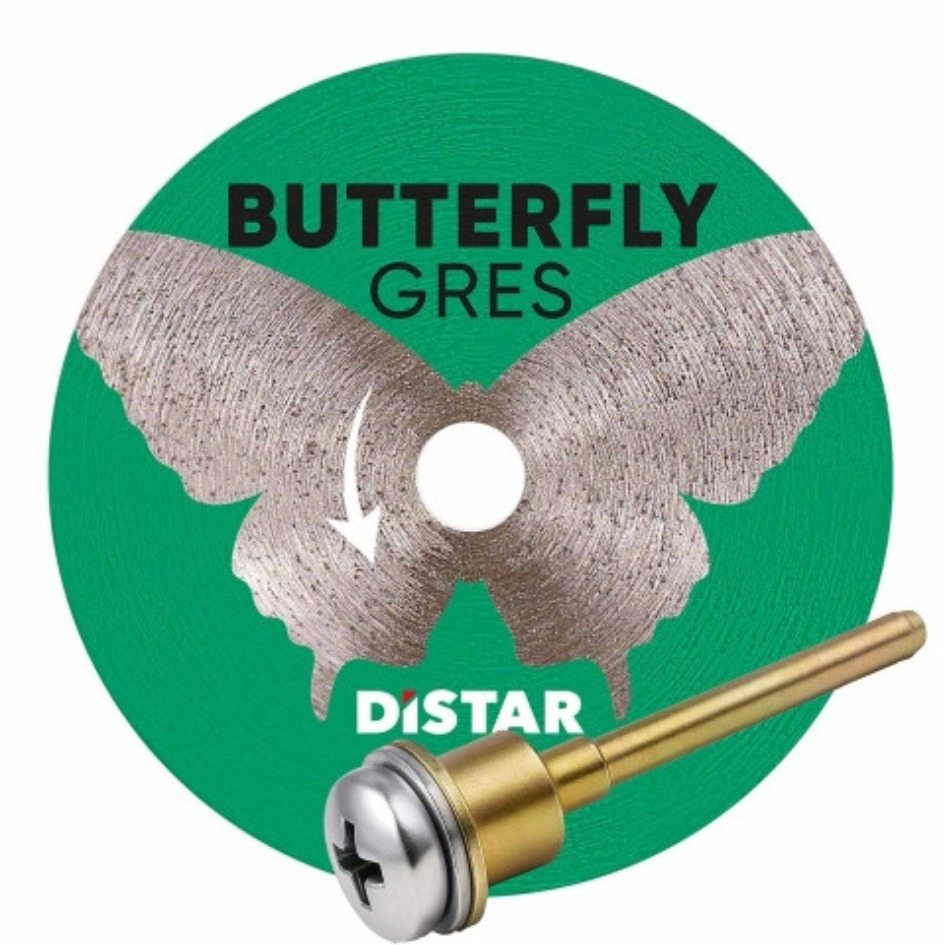

Diameter: 45mm Diamond Layer Thickness: 0.6mm Application: Ceramic & porcelain stoneware Cooling: Wet / water supply recommended DISTAR Article No.: 11133053027 Mounting Configuration: 5.8 / 3.2–3.0F configuration for this version

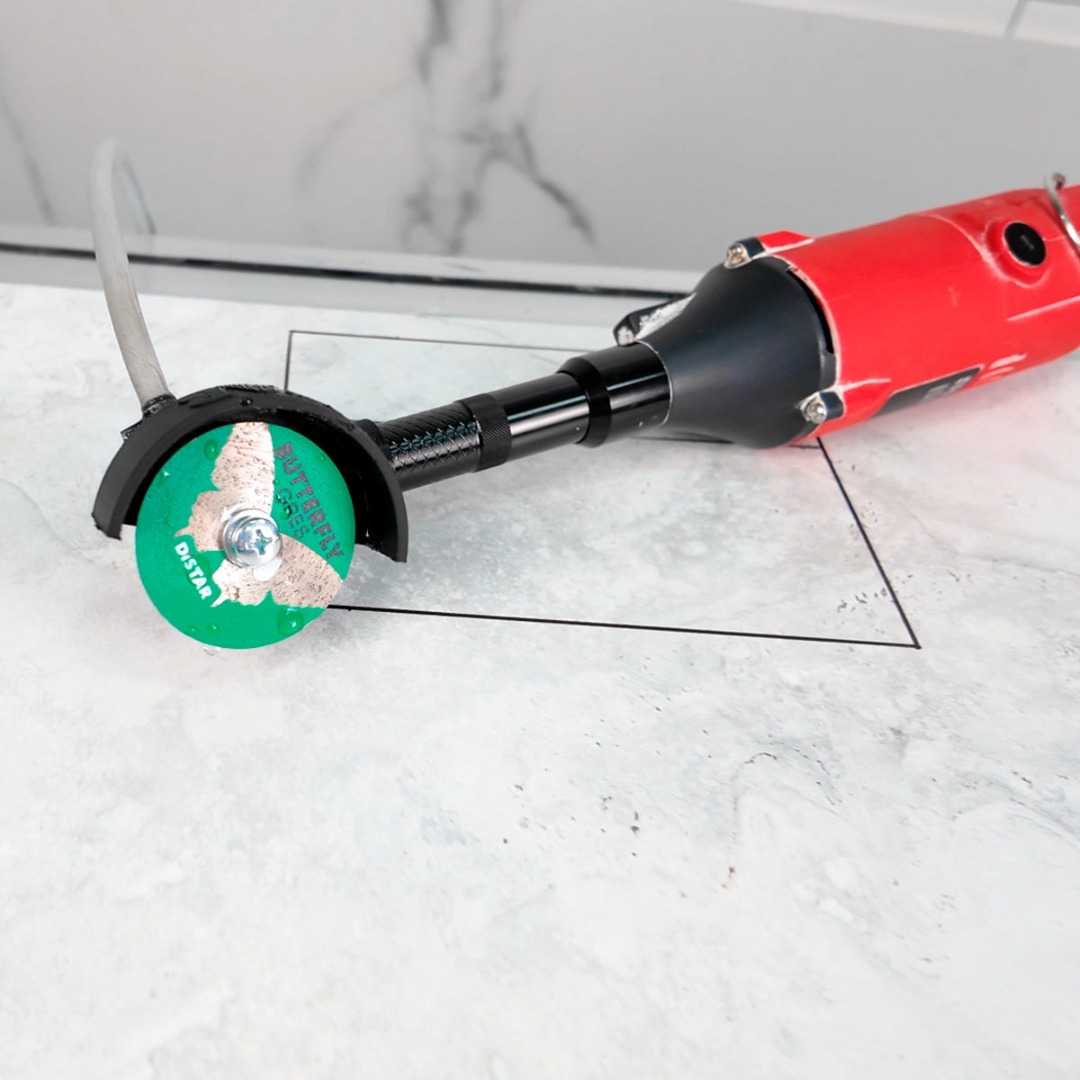

For precision tile work, the Butterfly can be paired with the PROXXON LWB/A cordless long-neck angle grinder to create an extremely compact cutting system. The small blade diameter provides visibility and control for detailed cuts that are difficult to perform with a standard 4″ or 5″ grinder.
Add a Water Guard and Hydro Tank for controlled wet cutting and you have a compact setup specifically suited to intricate porcelain fabrication.
