SUPER DUTY LIFTING CART

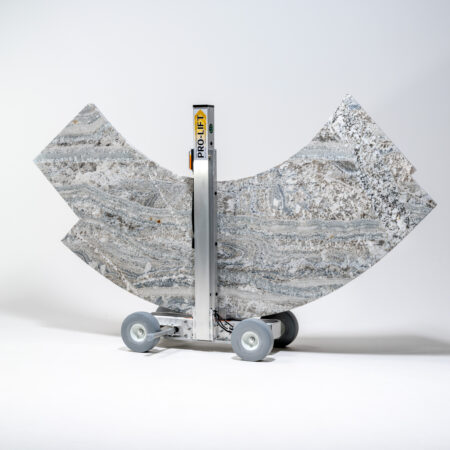

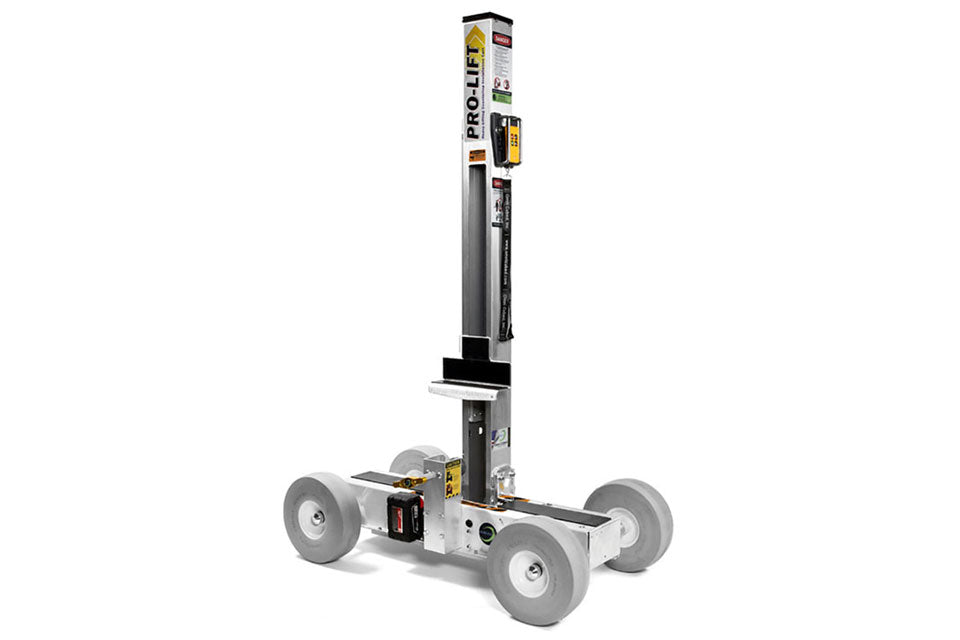

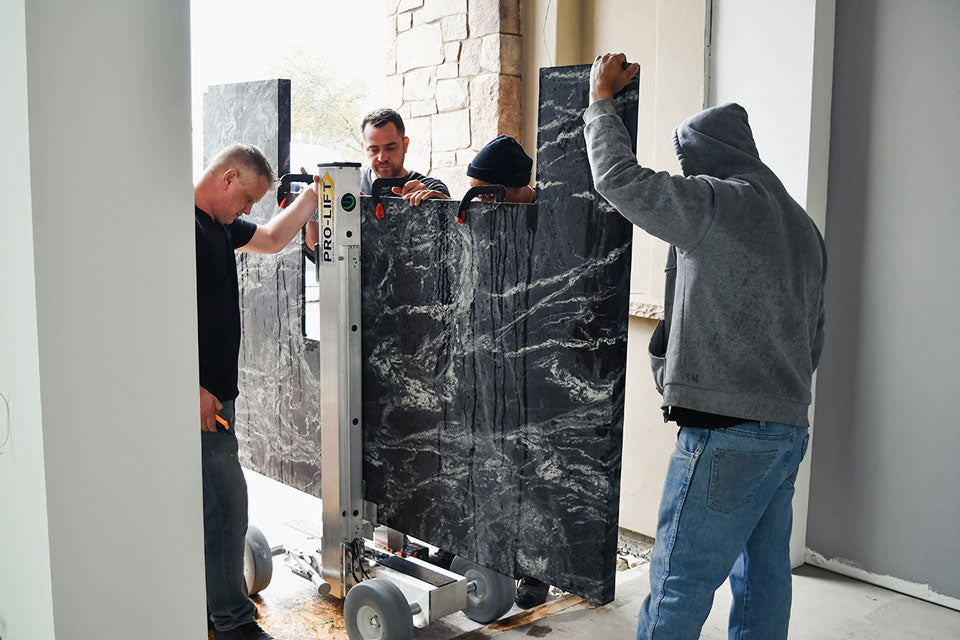

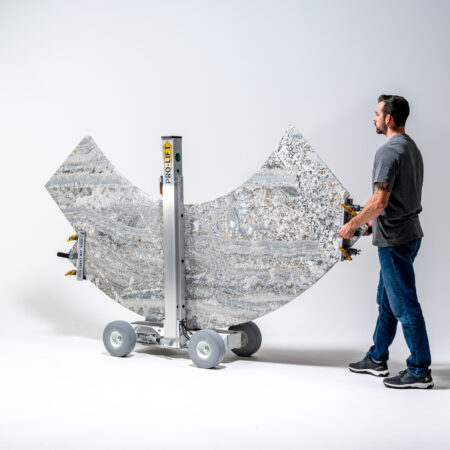

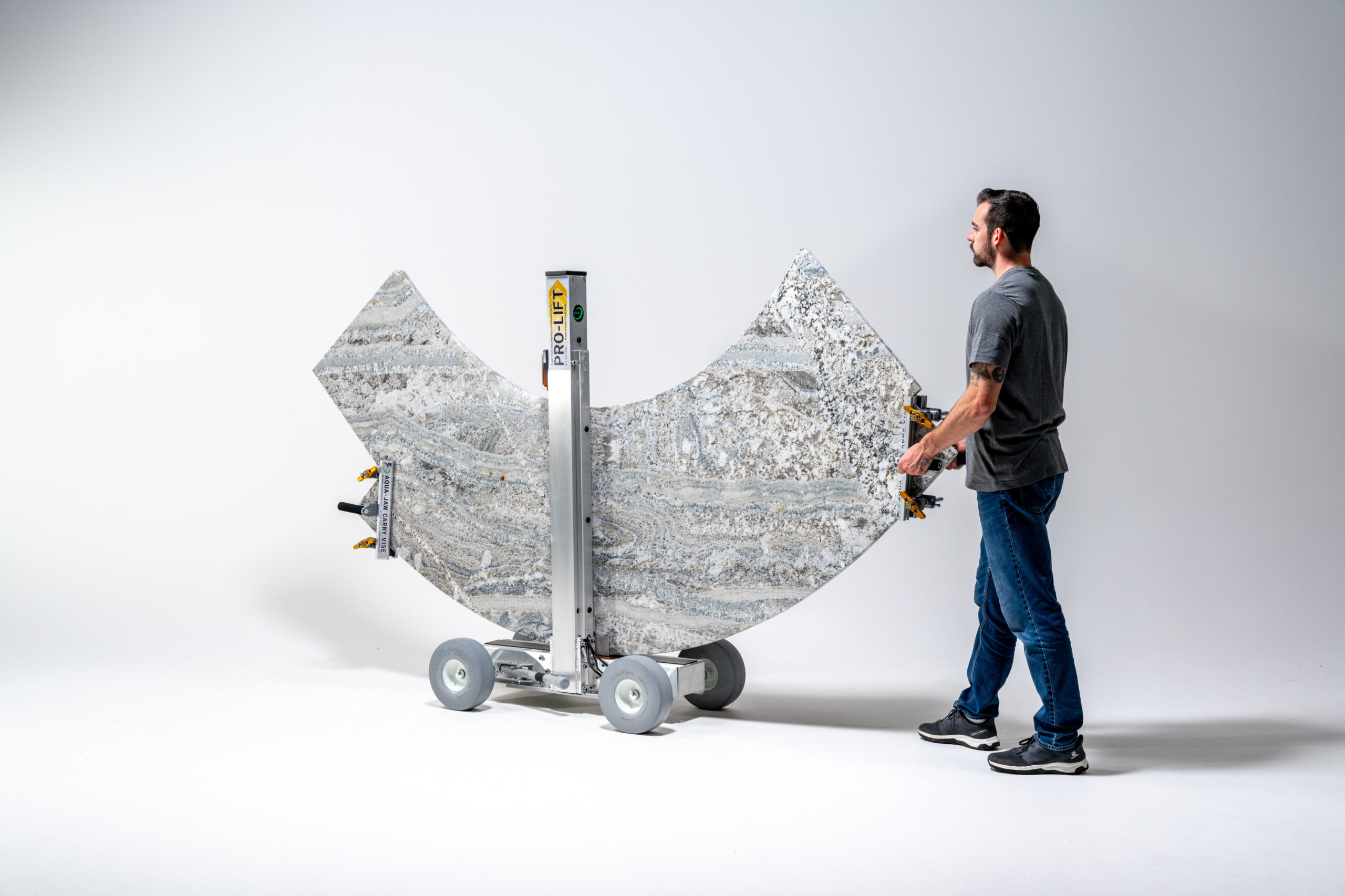

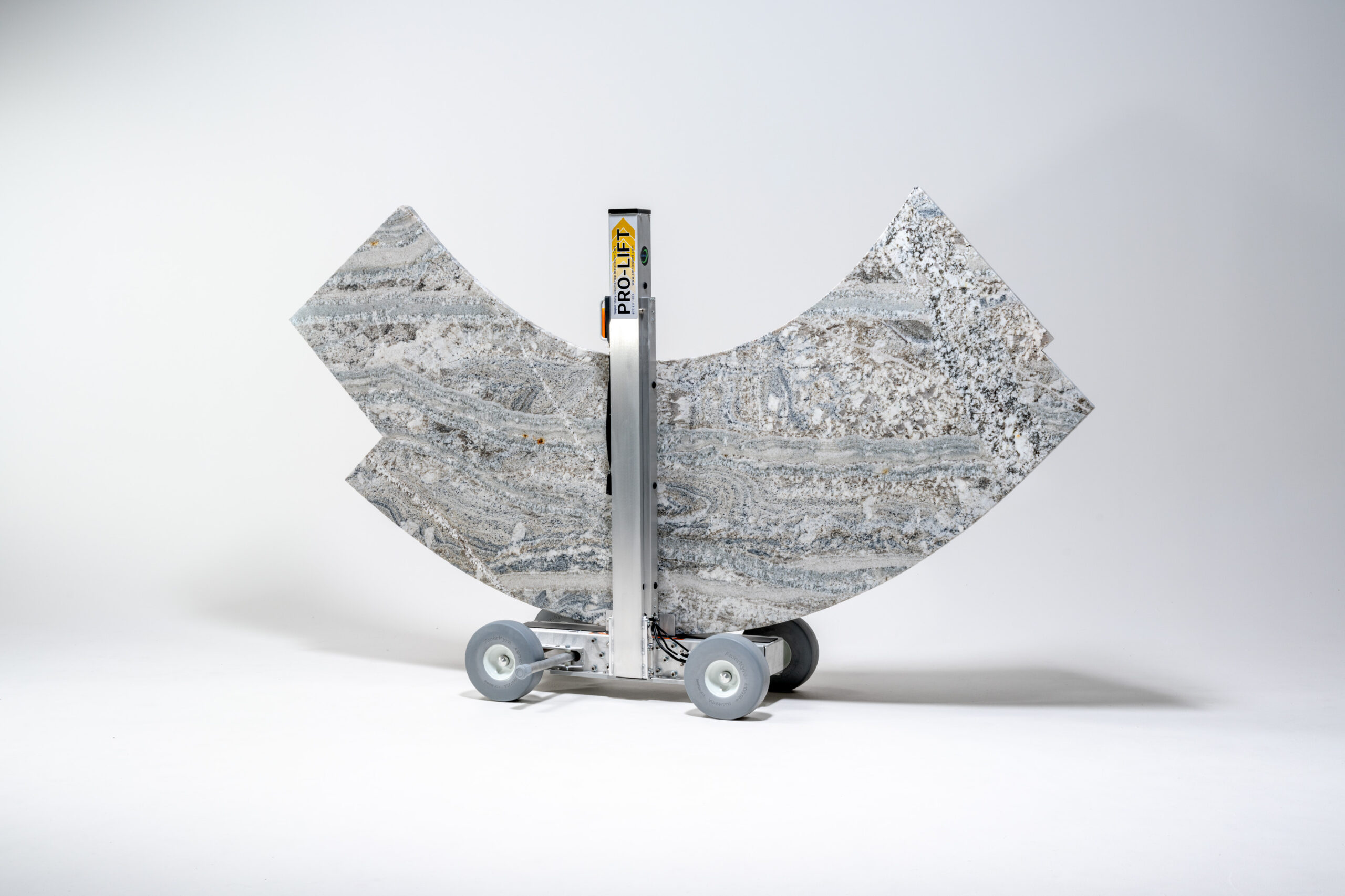

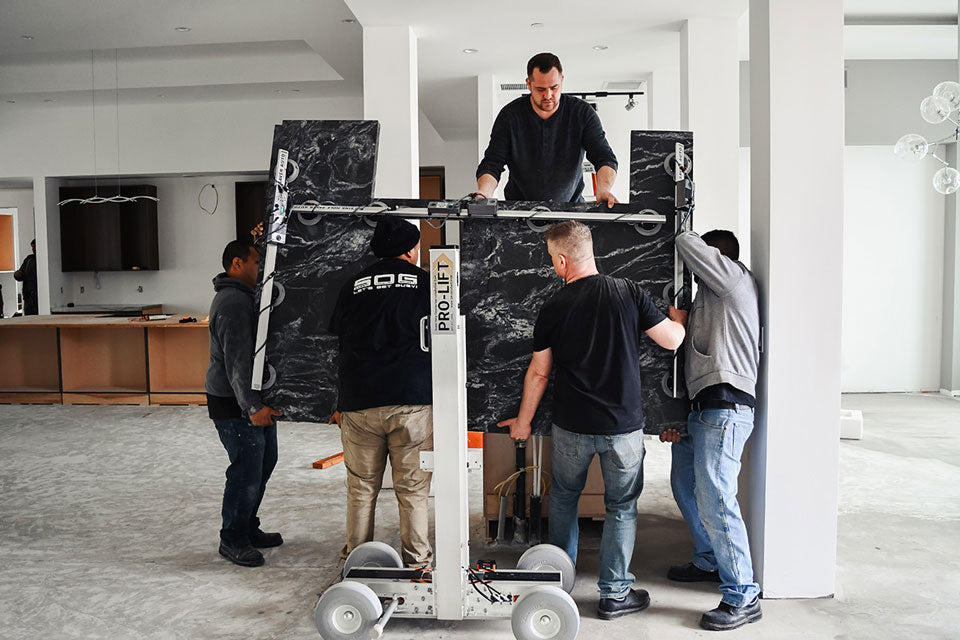

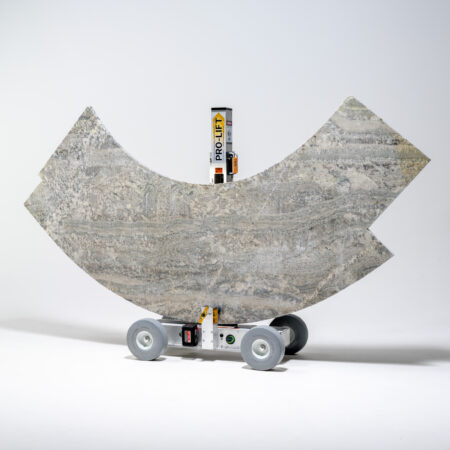

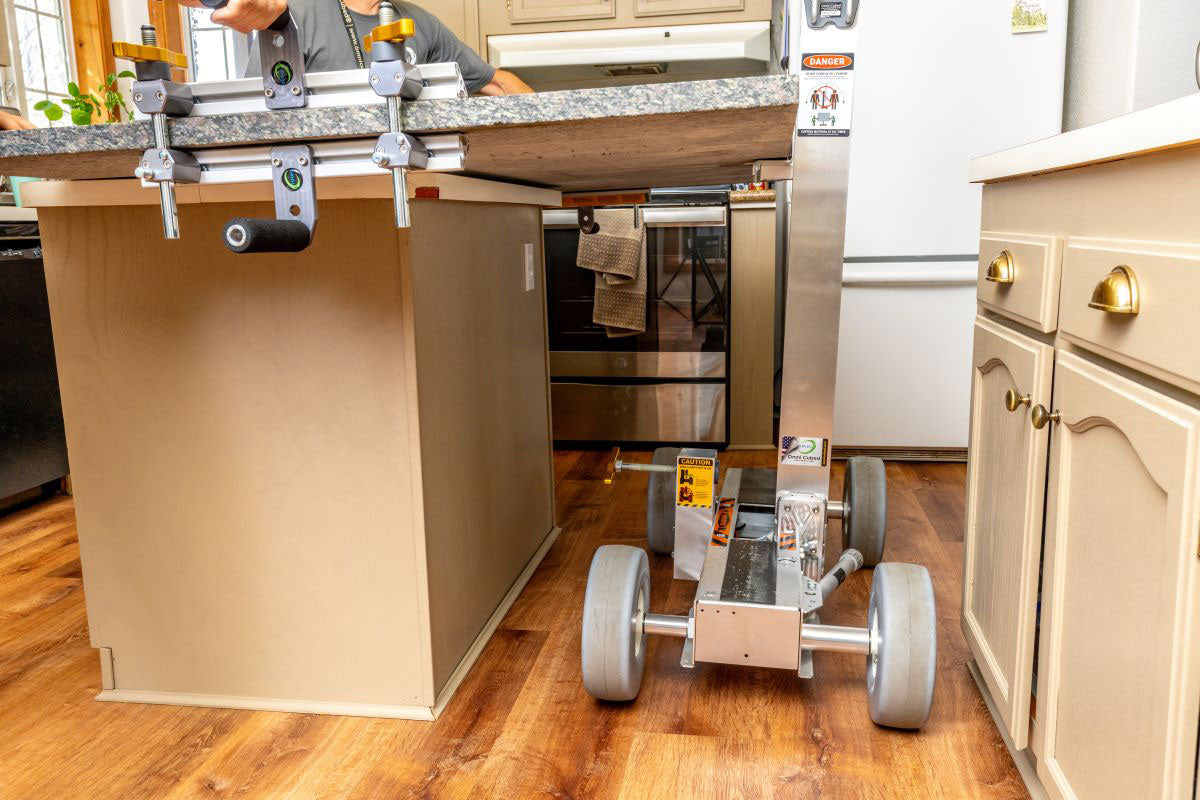

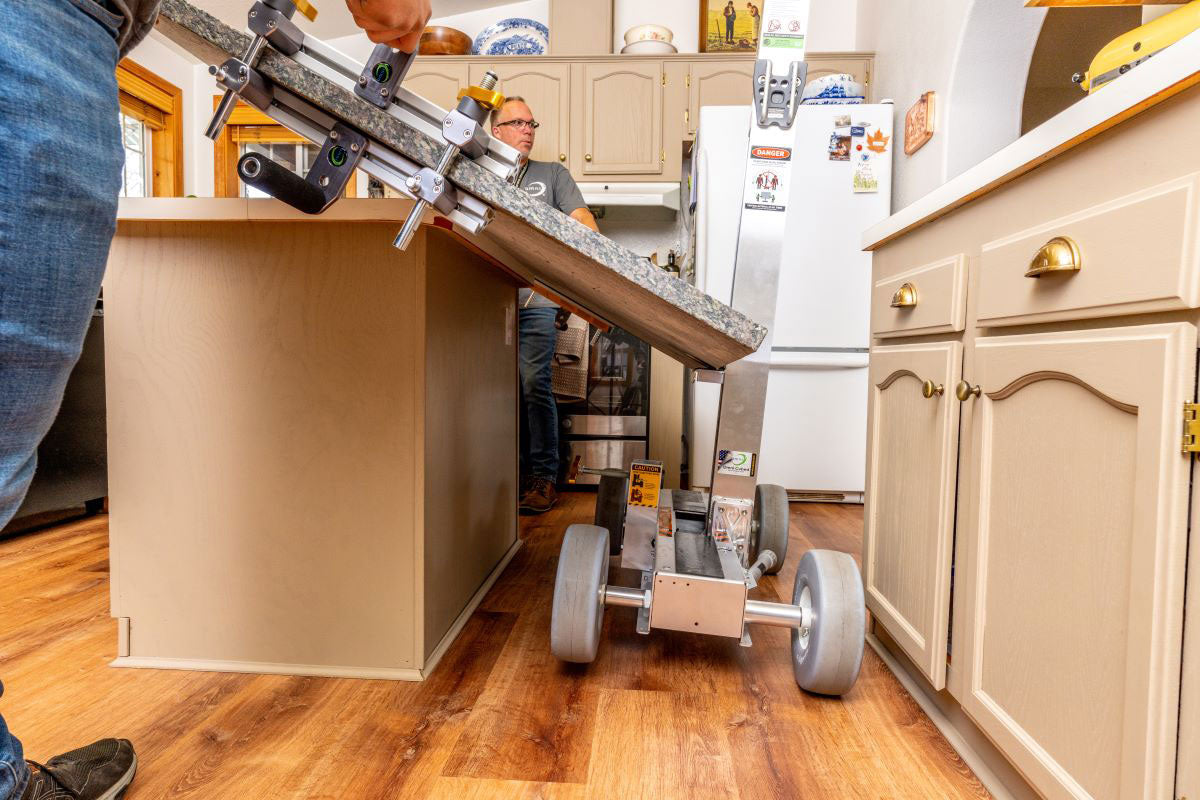

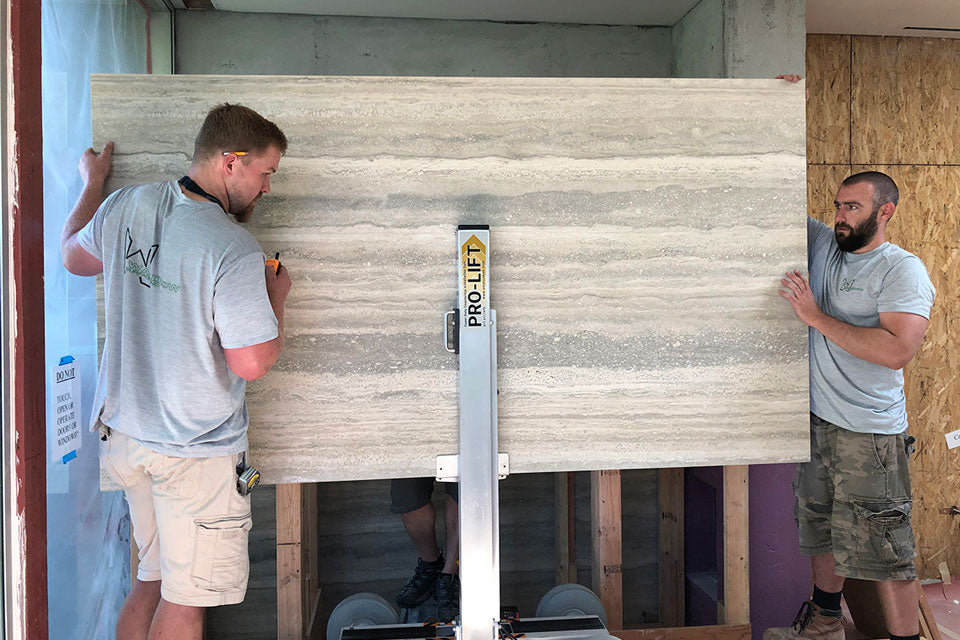

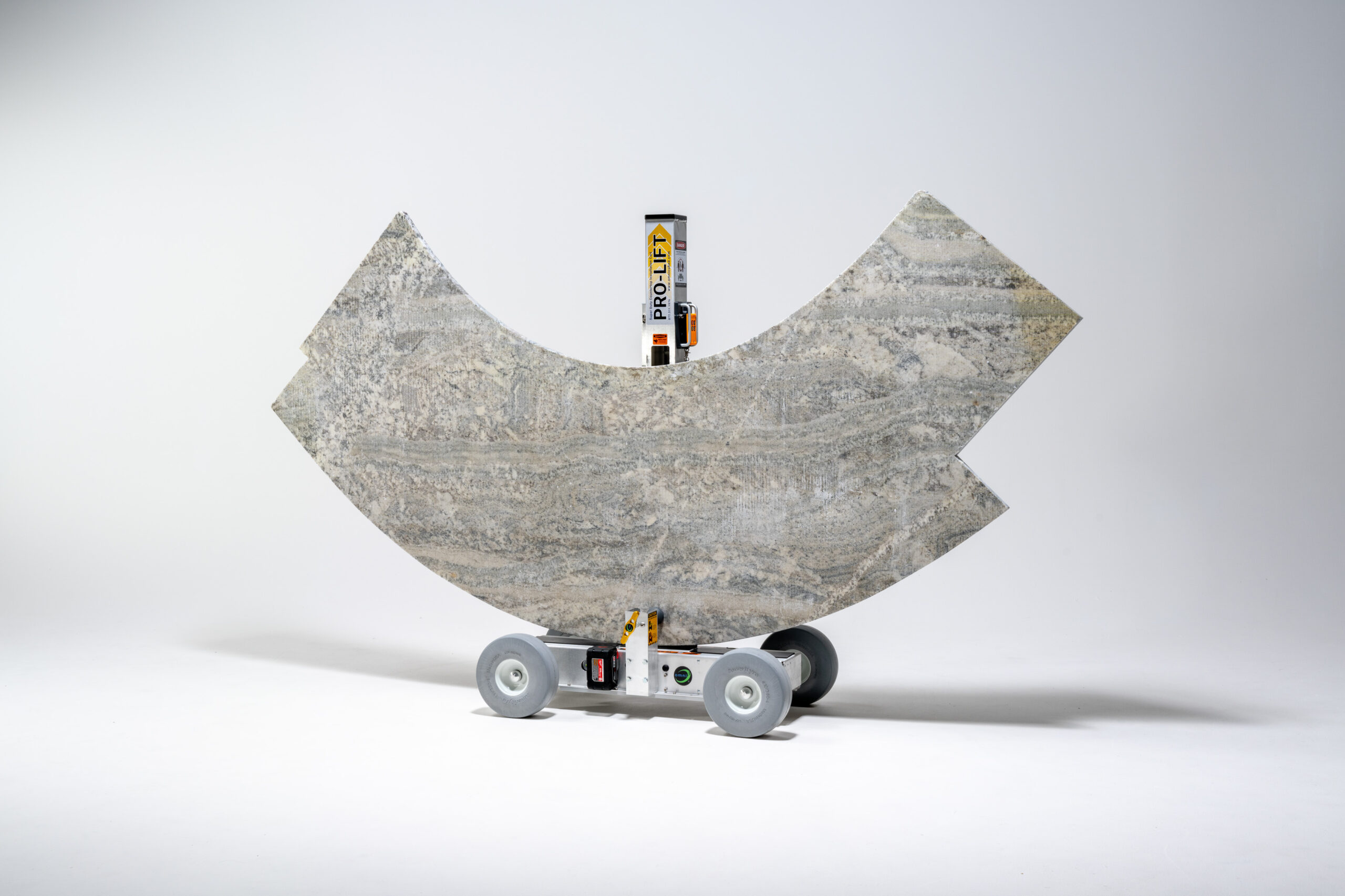

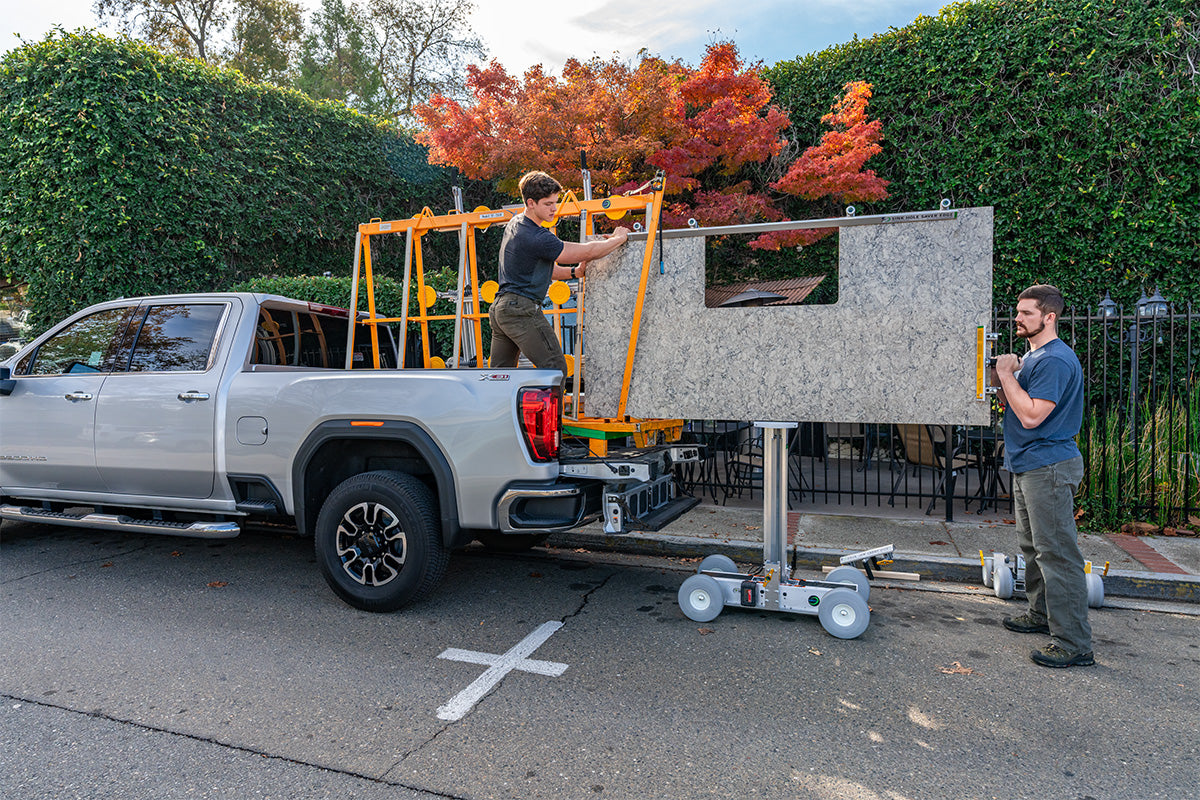

The Pro-Lift Automatic provides a safer means of stone transportation and installation. It has been designed to reduce physical strain and risk of injury, while increasing productivity and efficiency. The cart accommodates any size countertop up to 1,000 lb. The cart can be used to lower, lift, and roll extremely large pieces around the shop and install location, as well as assist with final countertop placement. The power lift feature elevates stone up to 45″ from ground to support rail, and enables controlled tilting for easier, less hazardous installation. The cart features a strong aluminum frame, yet only weighs 74 pounds for convenient transport and storage. Every aspect of this cart has been designed with safety, ease, and convenience in mind, to provide immeasurable benefit to small and large fabrication shops.
SPECIFICATIONS
|
Product Name
|
Pro-Lift Automatic
|
|
Product Guide
|
|
|
Part #
|
PLA-140
|
|
MSRP
|
$5,550.00 USD
|
|
Includes
|

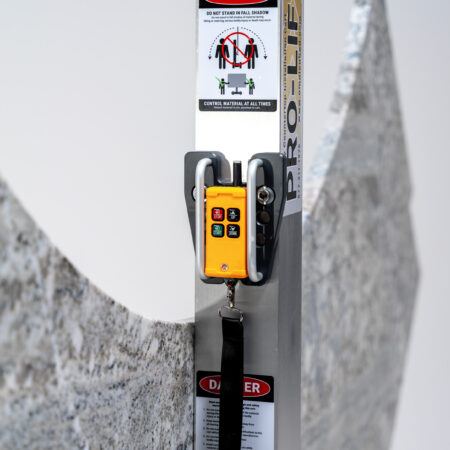

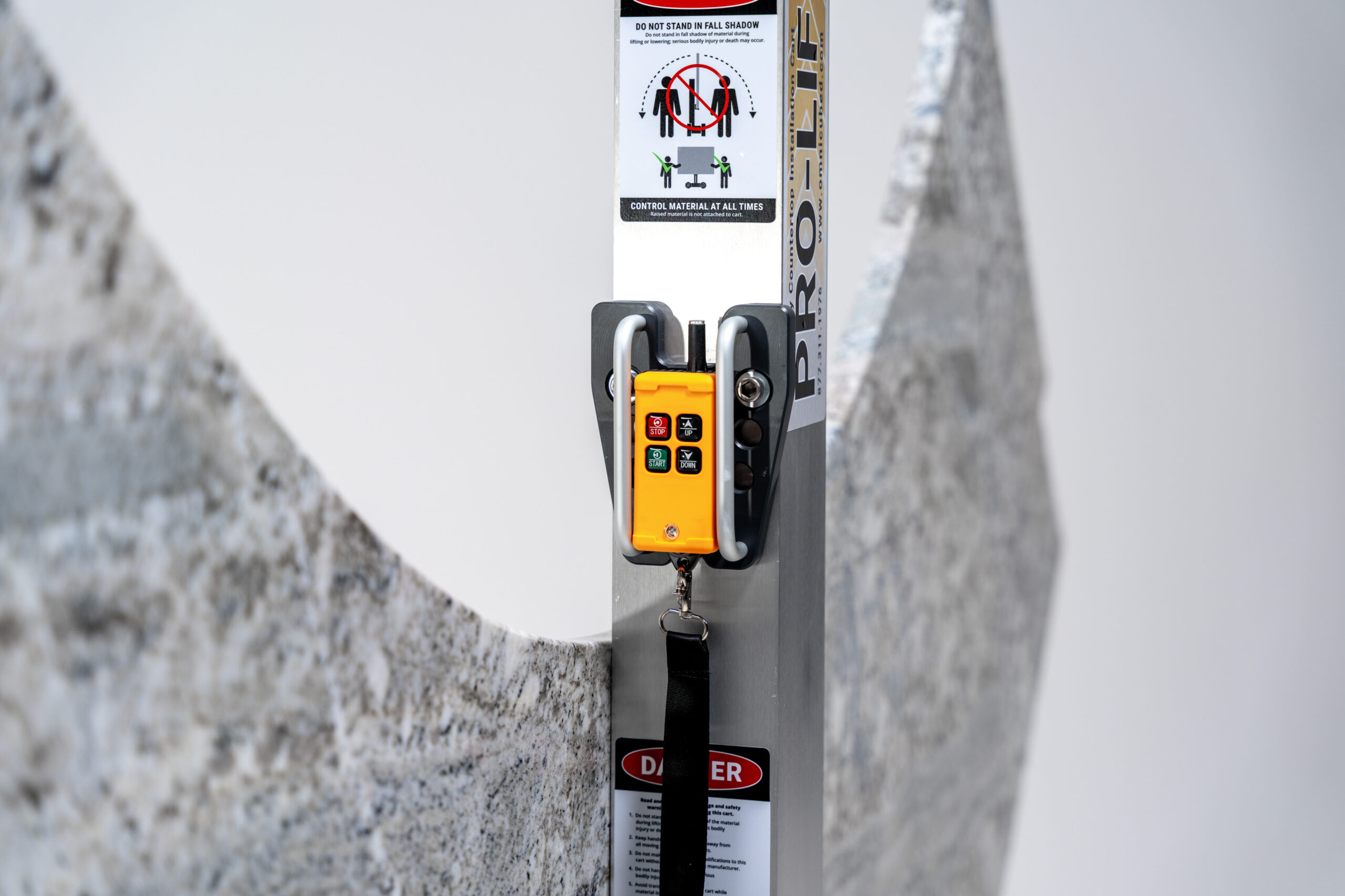

One cart with holding clamp, wireless remote with two AAA batteries and safety lanyard, lithium-ion battery, battery charger
|
|
Product Dimensions
|
40.5″ x 18″ x 62.5″
|
|
Product Weight
|
74.0 lb
|
|
Package Dimensions
|
43″ x 20″ x 68″ (pallet)
|
|
Shipping Weight
|
125 lb (on pallet)
|
|
Load Capacity
|
1,000 lb*
|
|

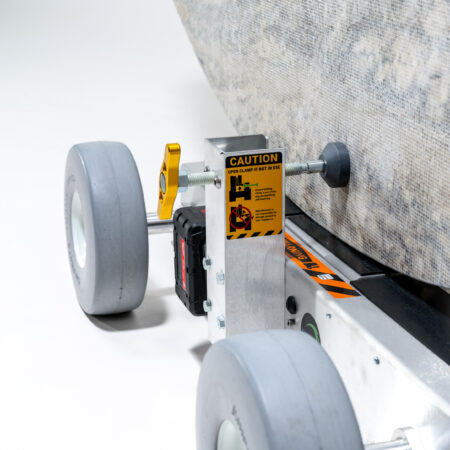

Clamping Range
|

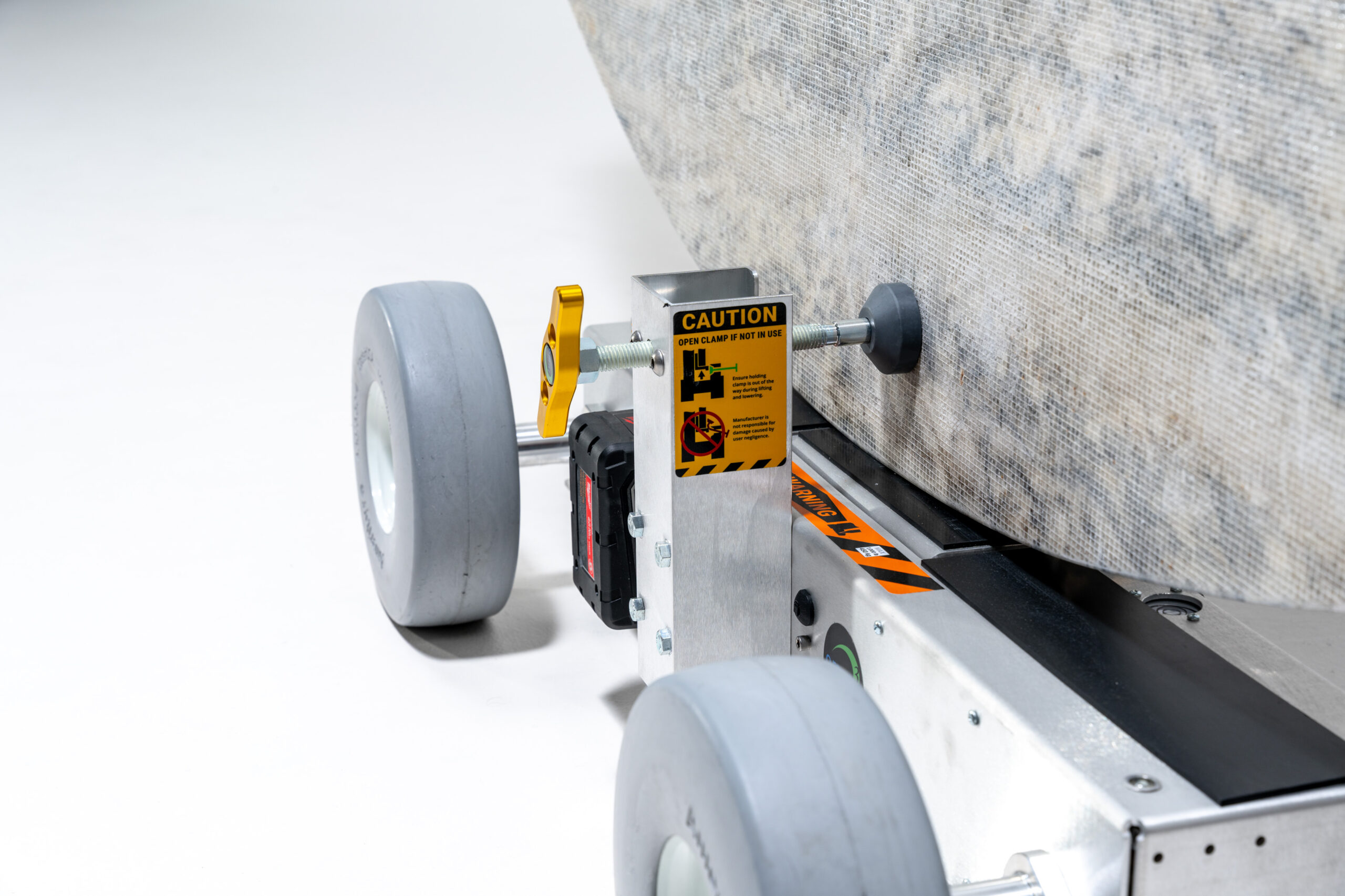

Max Opening: 115 mm (4.5 in.)
|
|
Batteries
|

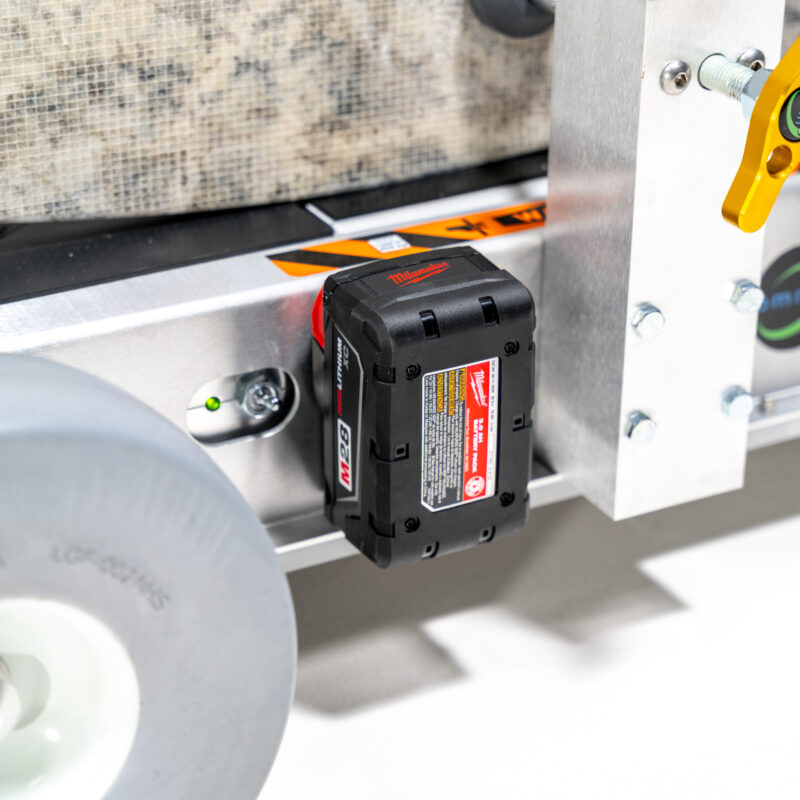

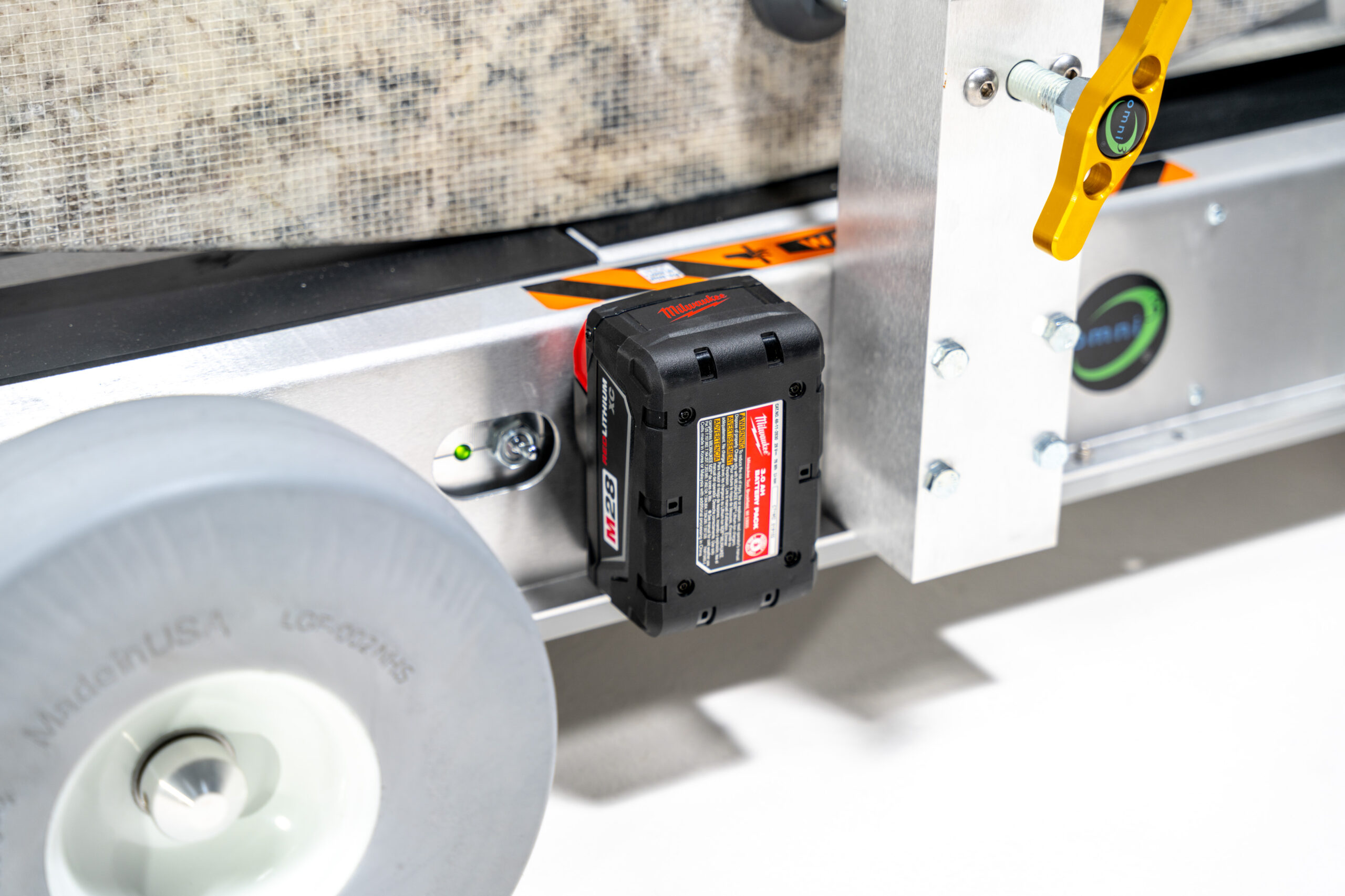

Cart powered by 28 volt lithium-ion rechargeable tool battery pack (Milwaukee M28™ model); remote control operates on two AAA batteries (included)
|
|
Disclaimer
|
*Although this product has been rated at 1,000 pounds, very tall and heavy pieces will be unstable and the utmost care must be taken to maintain safety. Read and understand all warnings, cautions, and instructions before using the Pro-Lift Automatic.
|
|
Materials
|

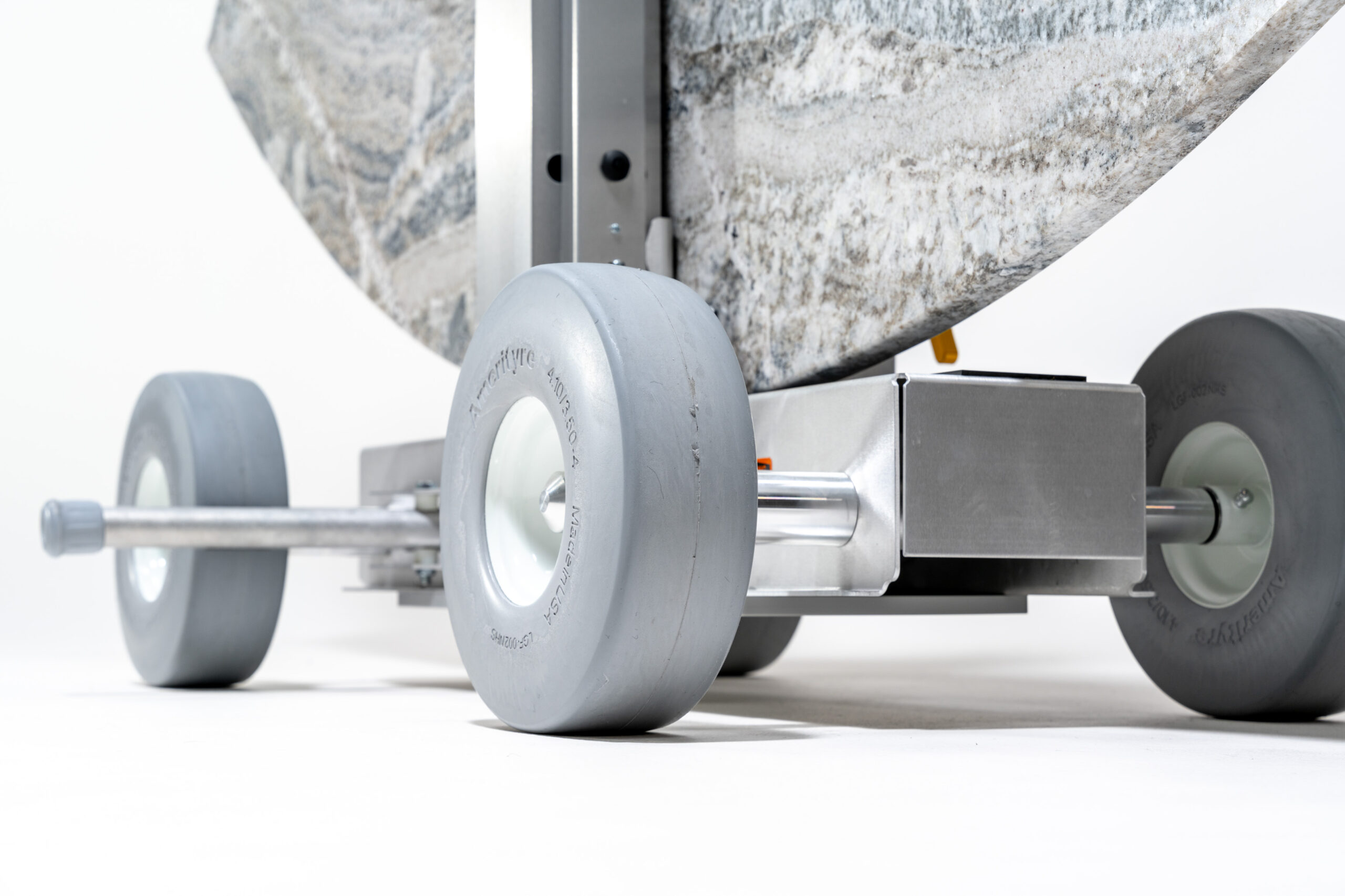

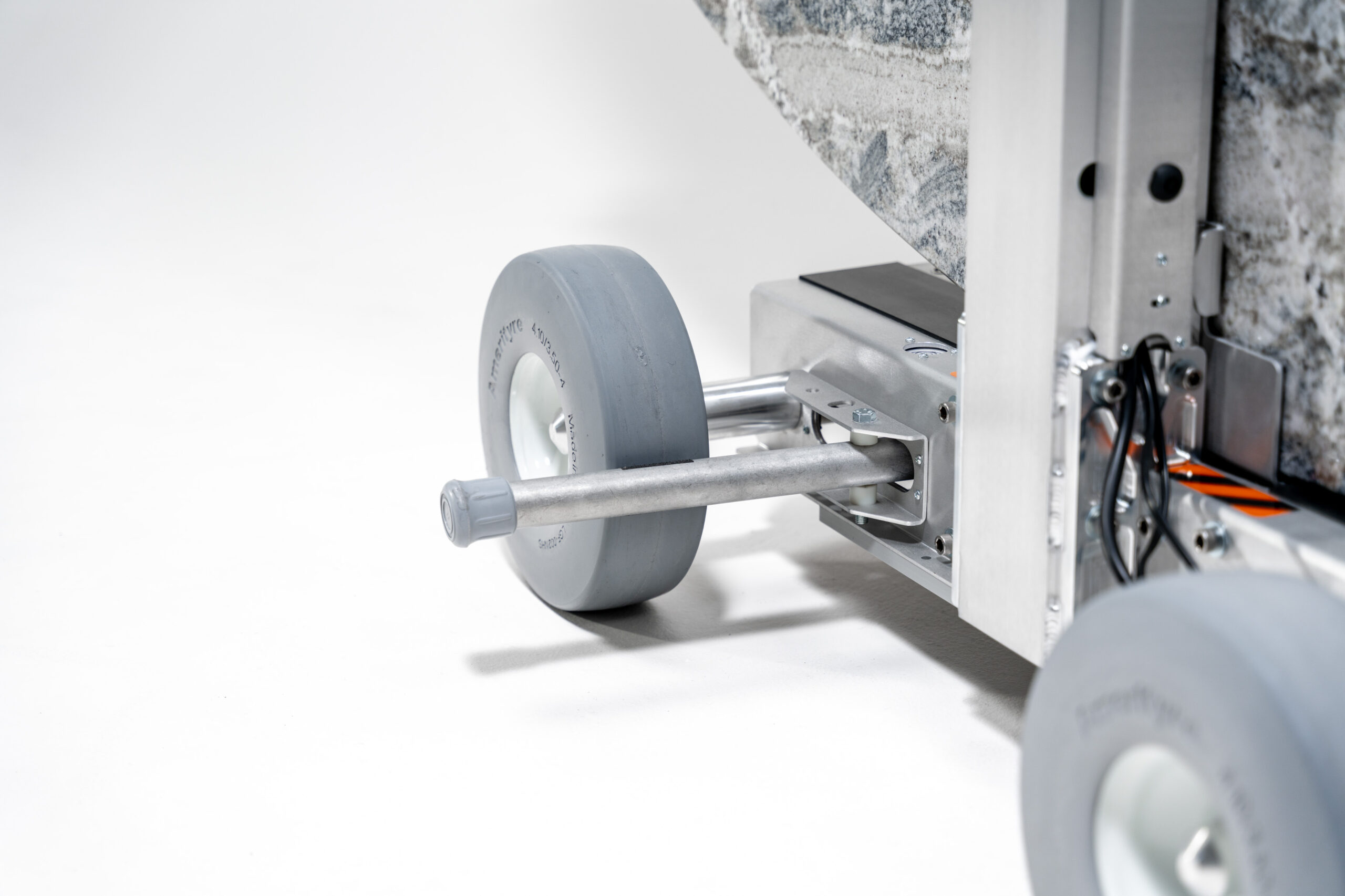

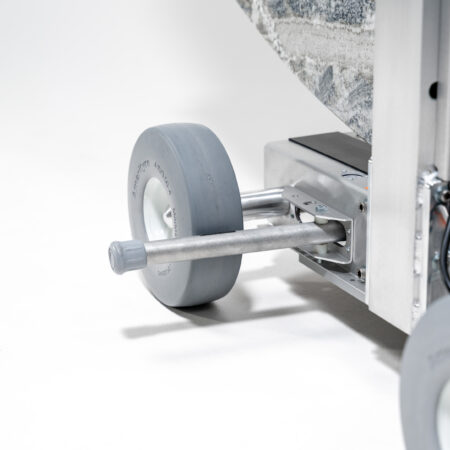

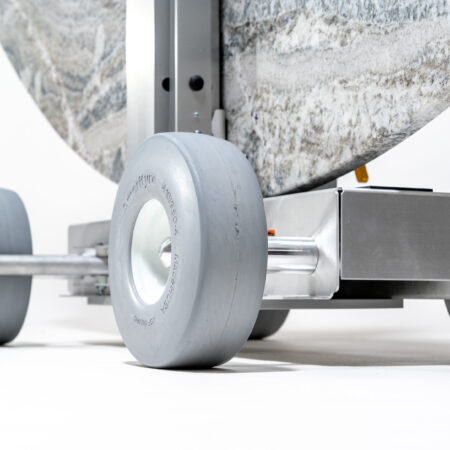

Square tube aluminum framework; machined billet aluminum tightening handle; stainless steel clamp shafts; PVC clamping pad; hard rubber padding strips on support rails; stainless steel and zinc plated steel hardware; 10″ closed-cell polyurethane tires (flat-free, non-marking)
|
|
Other Specs
|
45″ from support rail surface to the ground (fully elevated); 8″ from support rail surface to the ground (lowered); 18″ width at outside of tires
|
