Price range: $1,916.00 through $19,160.00

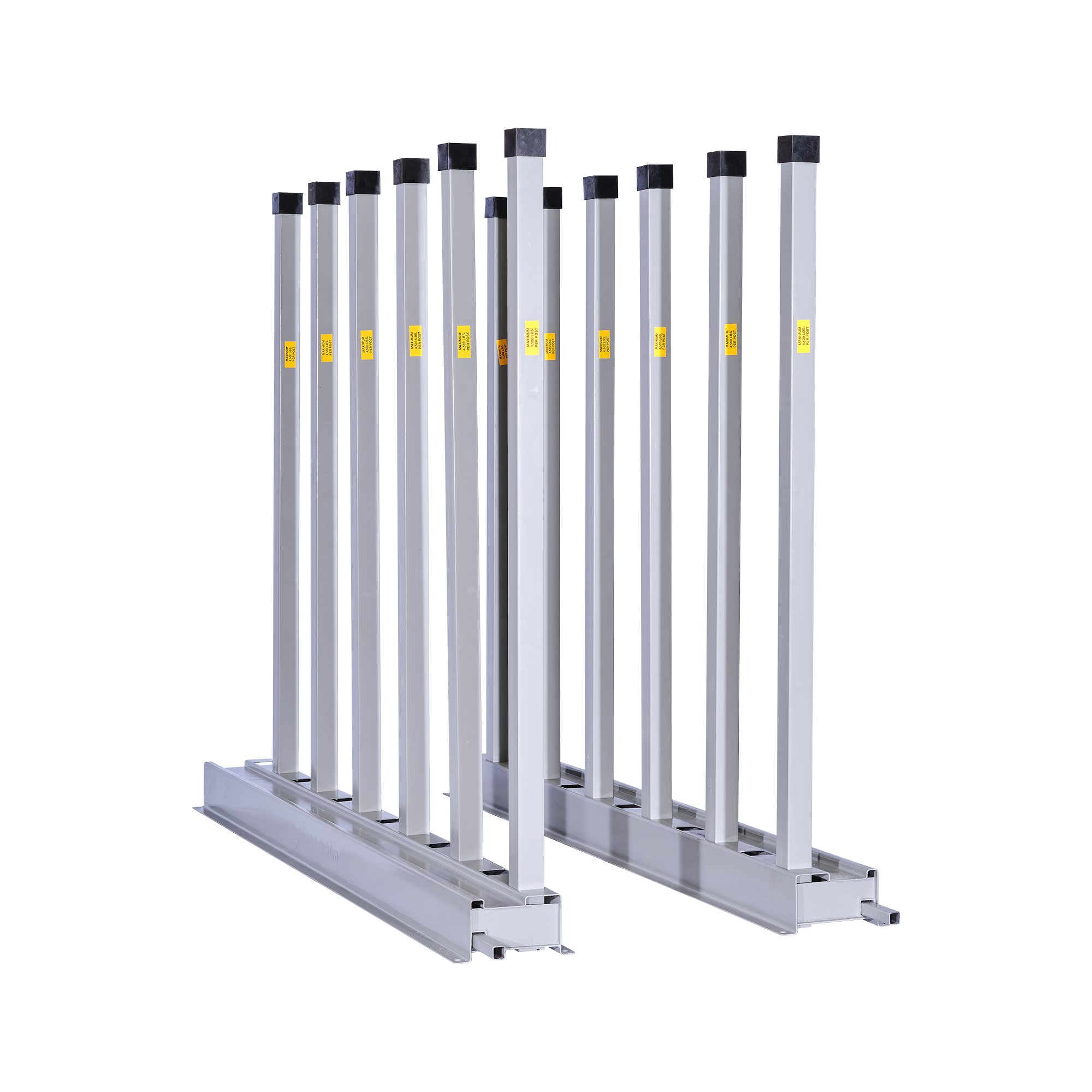

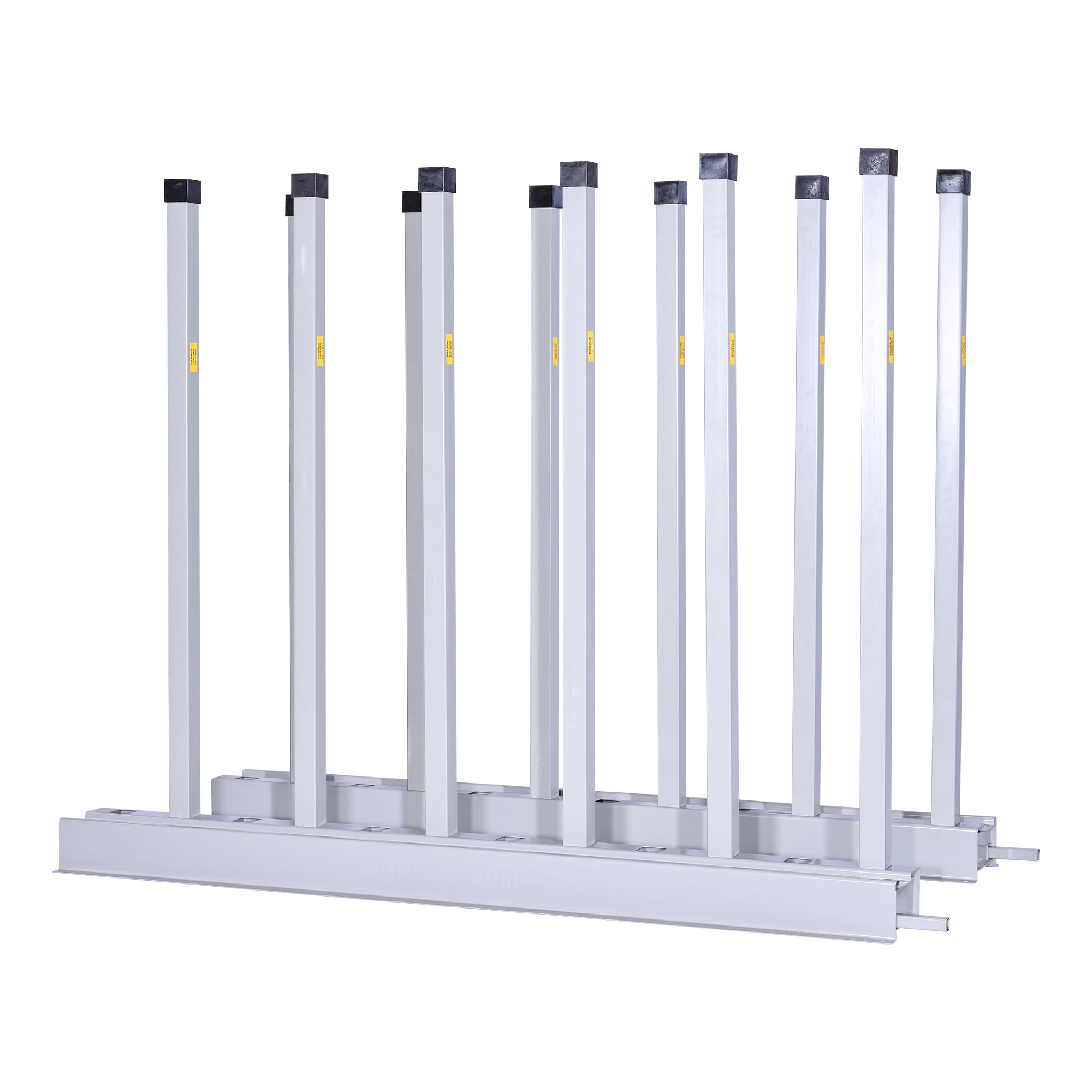

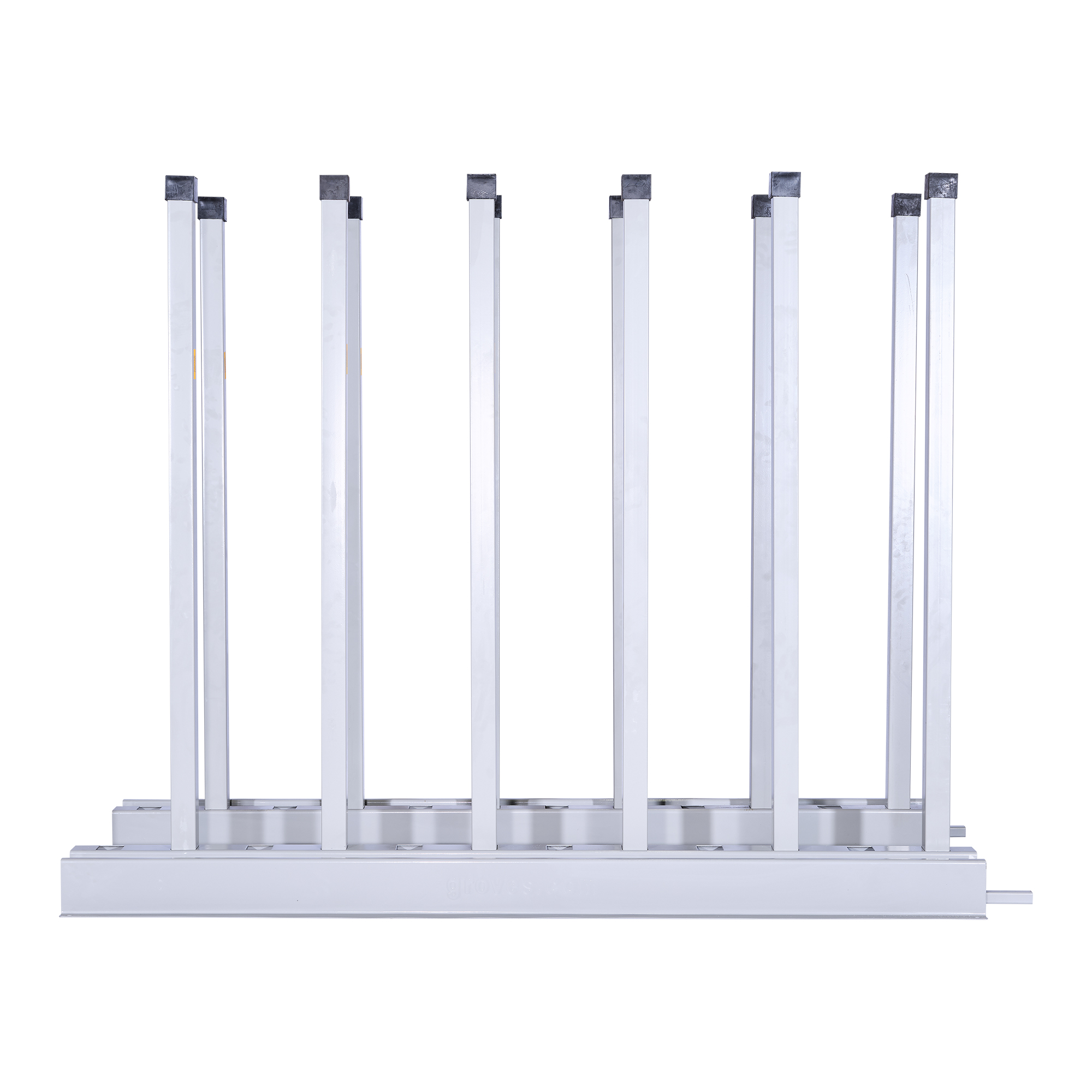

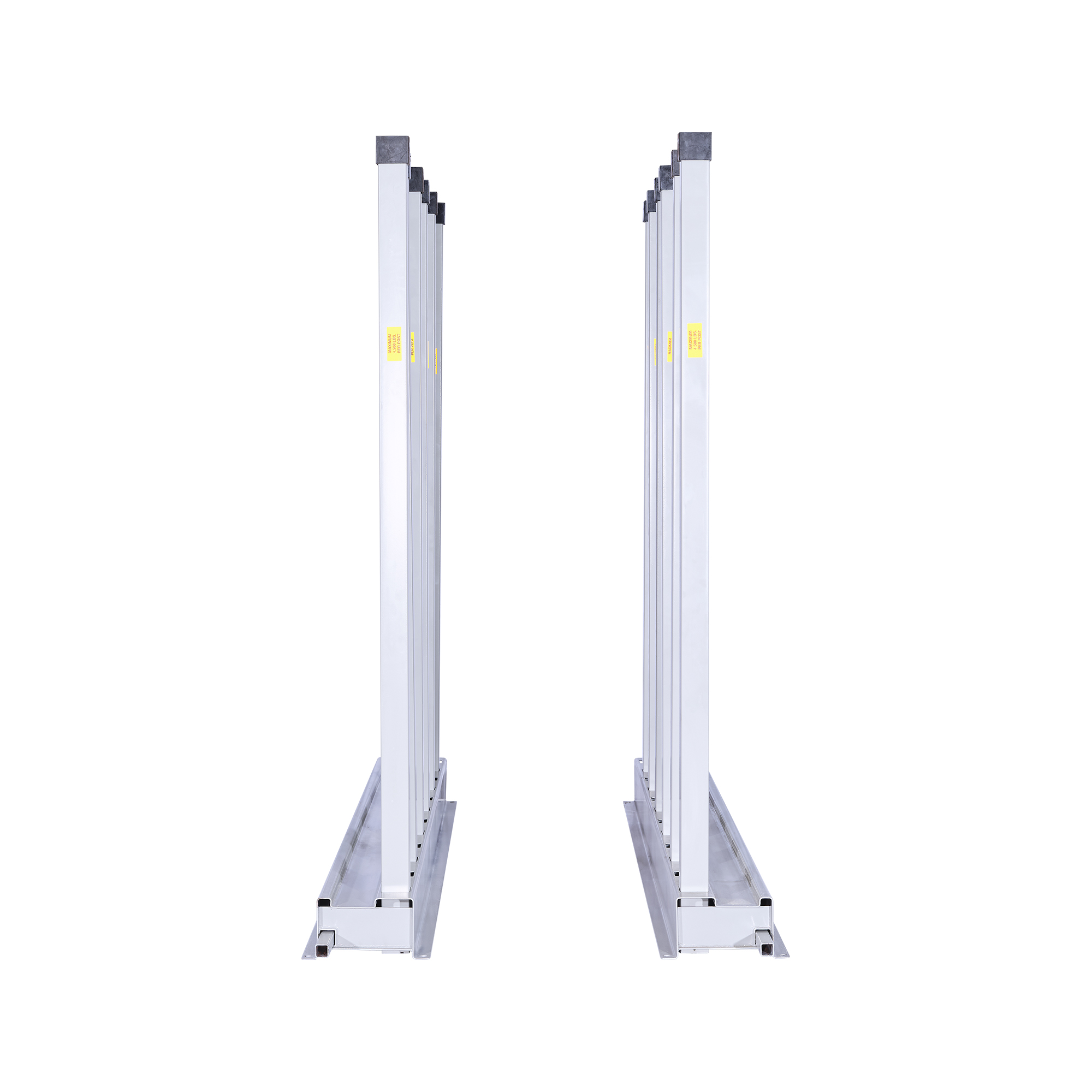

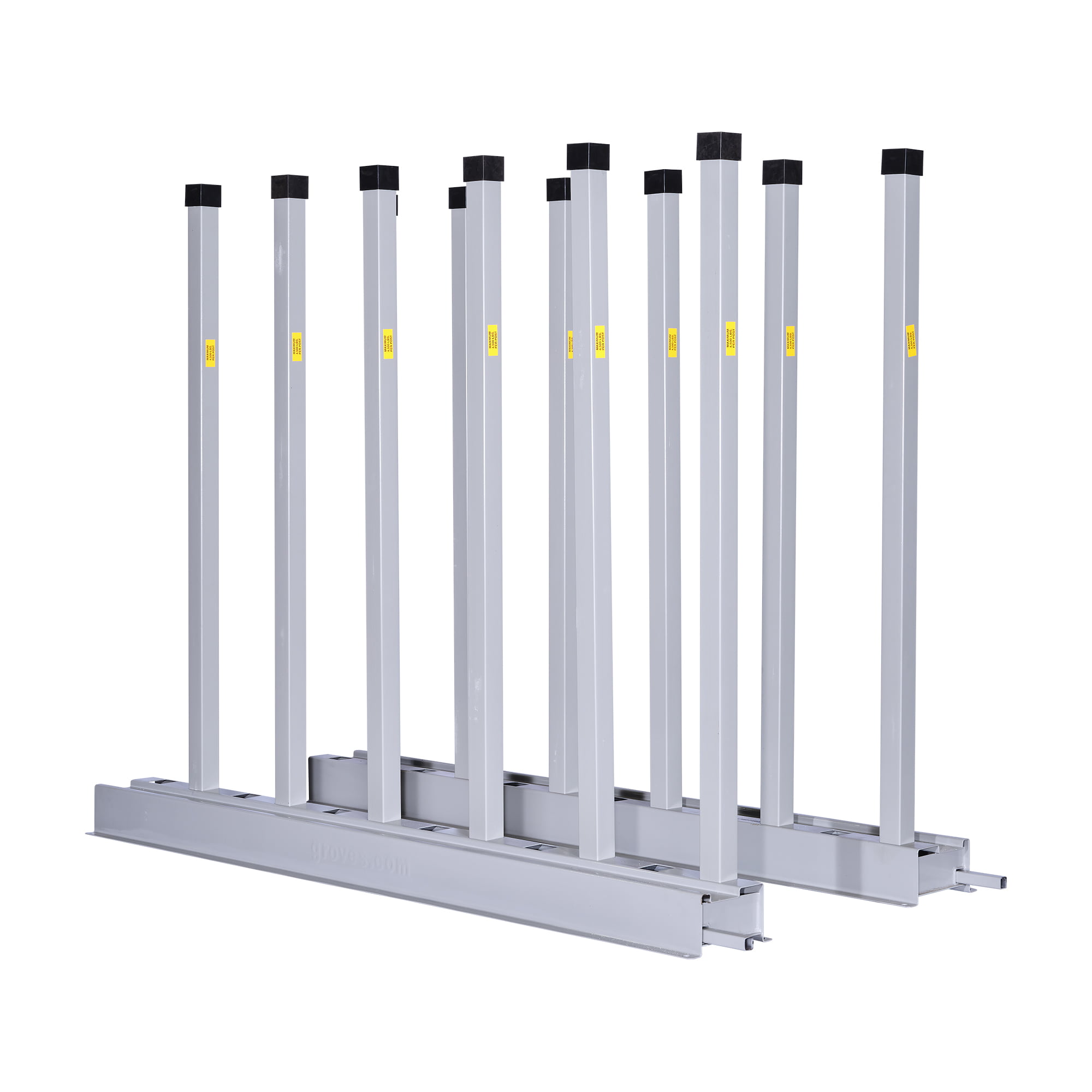

HEAVY-DUTY BUNDLE RACK-LONG
Introducing the Heavy-Duty Bundle Rack Long, designed for sturdy and efficient storage of heavy bundles and slabs. Featuring a heavy-duty powder-coated finish for durability, it comes with rails built with 2.5″ square holes spaced 5″ apart. Inside the rails, a steel plate with identical holes is welded and boxed 1″ up from the bottom.
The rack includes 2.5″ square tube posts and rubber post caps to separate bundles and slabs. With a 12” overhang on each side, it ensures secure storage. The 90″ rails are equipped with slots to hold 2 x 4’s (not included) to protect slab edges and rail finish. The rack also includes an 11″ connector tube for seamlessly joining rails in a straight line for the desired length.
2024_Groves_Glass_Stone_Catalog_240327.pdf (grovesglassandstone.com)
STONE_BR-HDBR2.5_Assembly-Guide_V2.pdf (grovesglassandstone.com)
7.5’ Length
(2) (HDBR2.5-90) 90” Long outside rail with wood slot,
(12) (SP-72) 72” x 2.5” x 2.5” Post – 3/16” Wall thickness,
(12) (PC-2.5) 2.5” x 2.5” Scratch resistant rubber post cap
15’ Length
(4) (HDBR2.5-90) 90” Long outside rail with wood slot,
(24) (SP-72) 72” x 2.5” x 2.5” Post – 3/16” Wall thickness,
(24) (PC-2.5) 2.5” x 2.5” Scratch resistant rubber post cap
30’ Length
(8) (HDBR2.5-90) 90” Long outside rail with wood slot,
(48) (SP-72) 72” x 2.5” x 2.5” Post – 3/16” Wall thickness,
(48) (PC-2.5) 2.5” x 2.5” Scratch resistant rubber post cap
45’ Length
(12) (HDBR2.5-90) 90” Long outside rail with wood slot,
(72) (SP-72) 72” x 2.5” x 2.5” Post – 3/16” Wall thickness,
(72) (PC-2.5) 2.5” x 2.5” Scratch resistant rubber post cap
60′ Length
(16) (HDBR2.5-90) 90” Long outside rail with wood slot,
(96) (SP-72) 72” x 2.5” x 2.5” Post – 3/16” Wall thickness,
(96) (PC-2.5) 2.5” x 2.5” Scratch resistant rubber post cap
75′ Length
(20) (HDBR2.5-90) 90” Long outside rail with wood slot,
(120) (SP-72) 72” x 2.5” x 2.5” Post – 3/16” Wall thickness,
(120) (PC-2.5) 2.5” x 2.5” Scratch resistant rubber post cap
