BATTIPAV CLASS PLUS 51″ RAIL TILE SAW

$3,195.00

Key Features: BATTIPAV VIP 2125 49″ RADIAL TILE SAW

  • Innovative Cutting Design: Precision cuts for porcelain stoneware, tiles, and marble.
  • Powerful Motor: Features a single-phase 115V~60Hz 1.8 hp
  • Advanced Features: Sliding cutting head, tilting engine, and adjustable angle fence.
  • Safety Measures: Switch release coil and thermal protection.
  • Stable Mobility: Adjustable legs for stability in various conditions.
  • Efficient Water-Cooling: Keeps the blade cool for smooth cuts.
  • Diamond Disk Included: Ø10-inch disk designed for porcelain.
  • Quality Craftsmanship: Made in Italy.
  • Professional Use: Ideal for contractors and tile professionals.
  • Laser Guide and Wheels: Enhanced precision and mobility

Experience efficient and precise tile cutting with our water-cooled Electrical Radial Tile Saw.

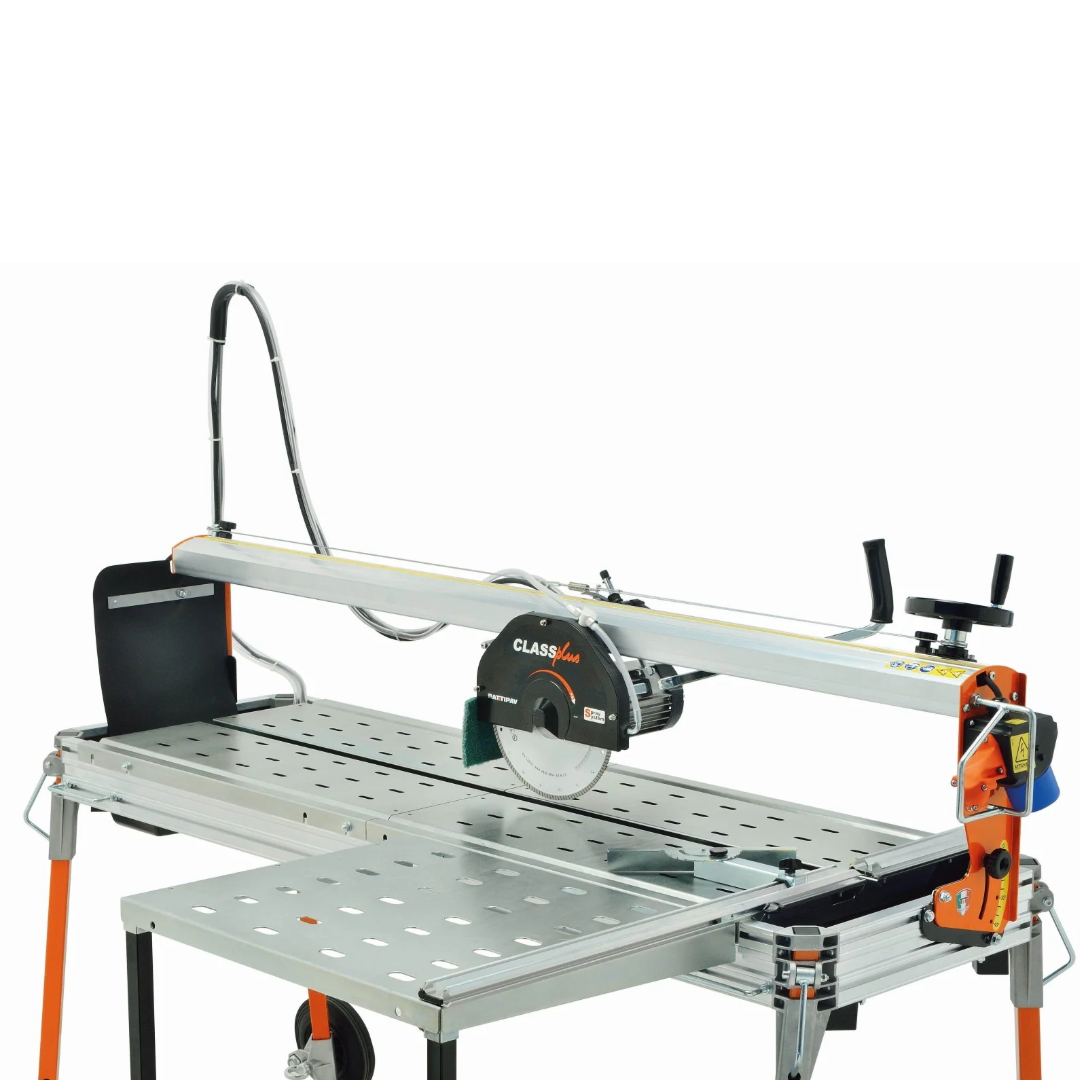

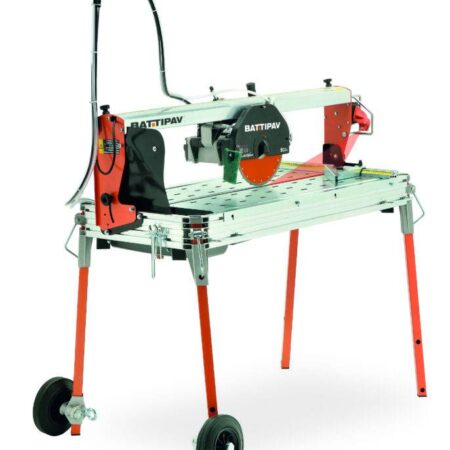

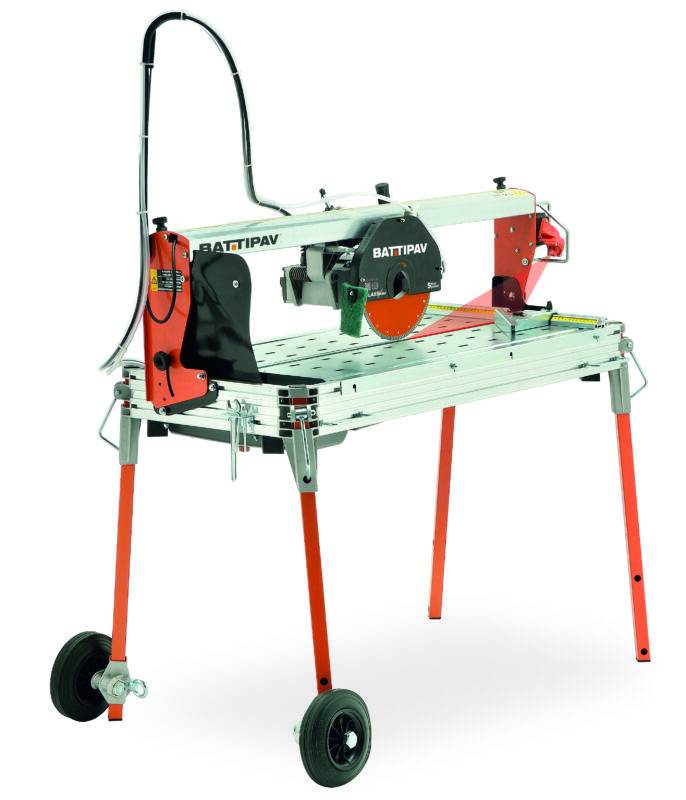

BATTIPAV CLASS PLUS 51″ RAIL TILE SAW

The BATTIPAV CLASS PLUS 51″ Tile Saw (1300S) offers advanced features for precise cutting of porcelain stoneware, tiles, and marble. It boasts a powerful 1.8 Hp single-phase motor, a sliding cutting head, and a tilting engine for versatile cuts. With dimensions of 69.09 x 26.57 x H 51.18 inches, the saw is both robust and stable, thanks to its adjustable legs. The saw includes a Ø9.84-inch diamond blade and efficient water-cooling, ensuring smooth operation. Optional features include side tile support, tile lock system, and an extension side bench. Standard features include a laser instrument, cutting progress system, and wheels for mobility.

BATTIPAV CLASS PLUS 51″ Tile Saw (1300S)

  • SIDE BENCH DIMENSION: 53.31 × 20.59 inches
  • MACHINE’S DIMENSION: 69.09 x 26.57 x H 51.18 inches
  • WEIGHT: 121.25 lbs
  • SIZE TILE FOR DIAGONAL CUTTING: 32.28×32.28 inches (36.22×36.22 inches with H. max 1.65 inches)
  • MAX CUTTING LENGTH: 45.67 inches (51.18 inches with H. max 1.65 inches)
  • MAX CUTTING THICKNESS: 2.56 inches
  • MAX CUTTING DEPTH FOR 45° (JOLLY) CUT: 2.09 inches
  • MAX CUTTING DEPTH WITH 2 RUNS: 3.15 inches
  • ROTATION SPEED: 2800 rpm
  • POWER ENGINE: 1.8 Hp / 1.4 Kw
  • THERMIC PROTECTION: 170°C
  • ENGINE TYPE: SINGLE-PHASE 230V~50Hz
  • TOOL HOLE: Ø1 inch (also Ø0.62 inches)
  • DIAMOND BLADE DIAMETER: Ø9.84 inches
  • WATER PUMP: S1/4
  • WATER TANK CAPACITY: Min. 5.81 / Max. 7.40 gallons
  • SIDE TILE SUPPORT: Optional
  • LONG SLOT FOR SIDE TILE SUPPORT: Optional
  • TILE LOCK SYSTEM: Optional
  • CUTTING PROGRESS SYSTEM: Standard
  • EXTENSION SIDE BENCH: Optional
  • WHEELS: Standard
  • FENCE: Standard
  • LASER INSTRUMENT: Standard
