LATICRETE NXT® PEDESTAL MAX 45MM–145MM – ADJUSTABLE RAISED DECK & PAVER SUPPORT

Key Features

• Adjustable from 45mm to 145mm for precise elevation

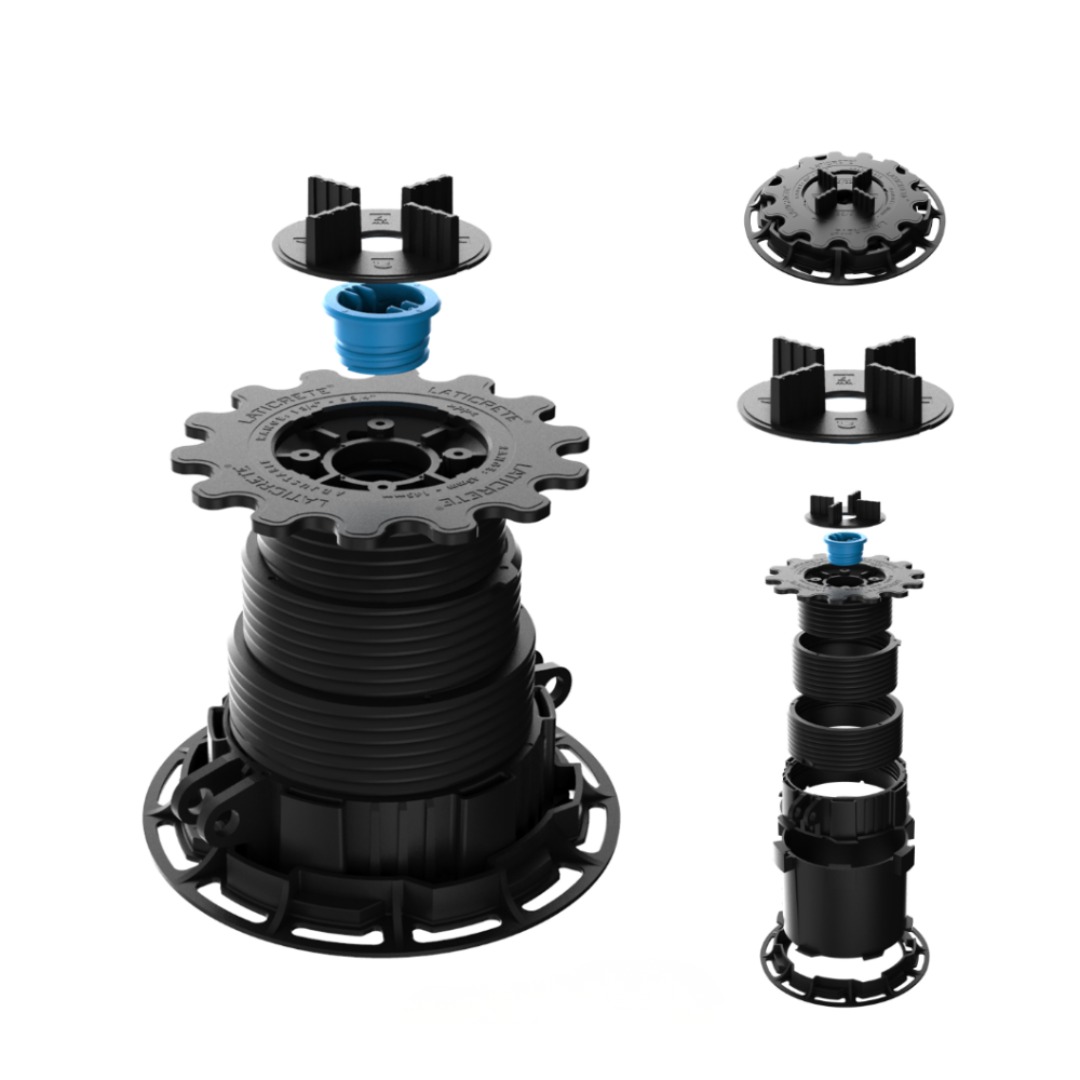

• Triple-screw adjustment allows fine height tuning
• Self-leveling/pivoting head accommodates slopes up to 5°
• Built-in 5/32″ (4mm) spacer tabs provide consistent joint spacing
• Integrated sound-dampening pad helps reduce noise and vibration
• Weather-resistant construction for exterior applications
• Supports pavers, porcelain, natural stone, concrete and timber decking

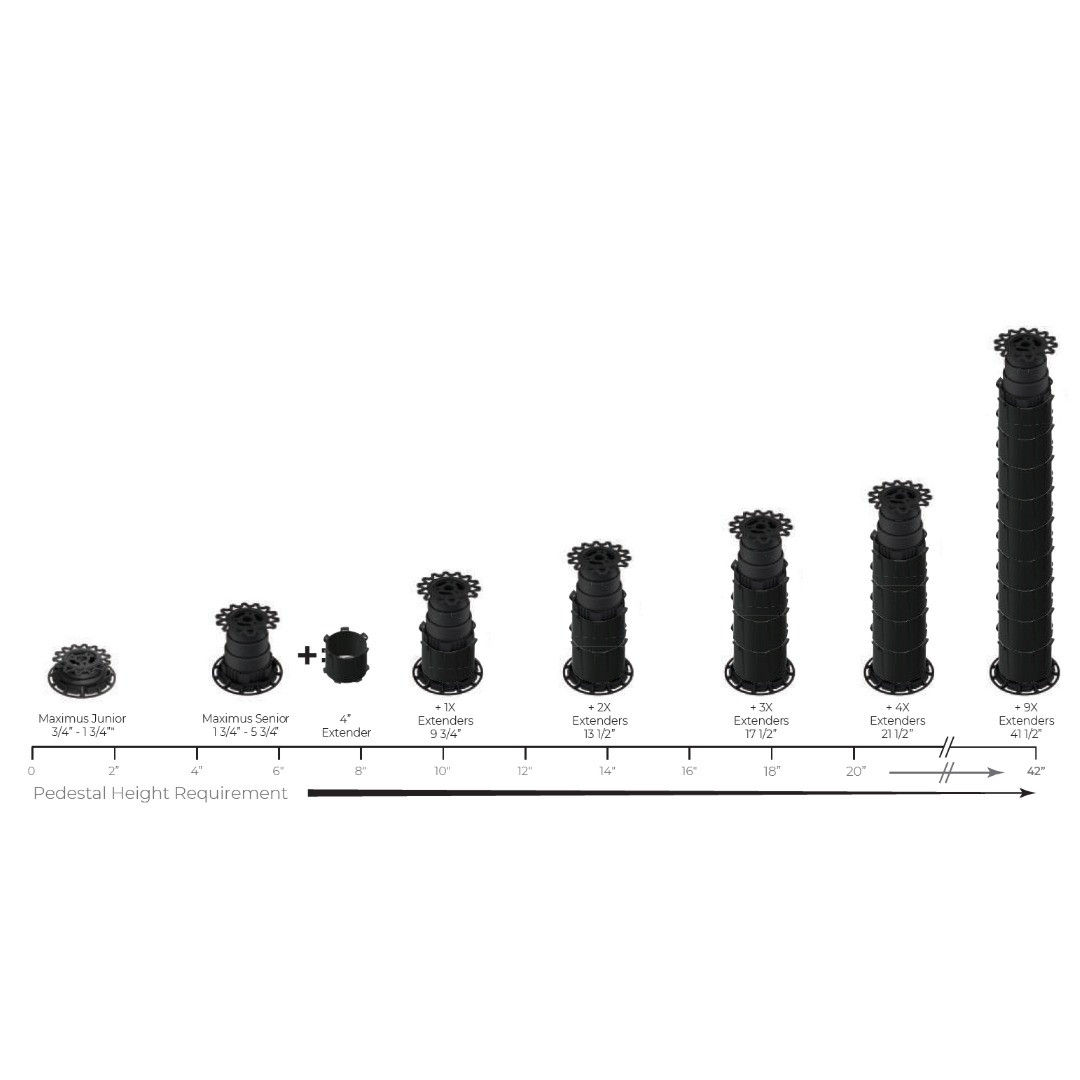

• Compatible with LATICRETE NXT Pedestal Extenders for additional height
• Can be adjusted during and after installation using compatible adjustment tools
• Designed for installation over structurally sound concrete, masonry, waterproofed exterior plywood decks, and metal/steel substrates

Ideal Applications

Perfect for:

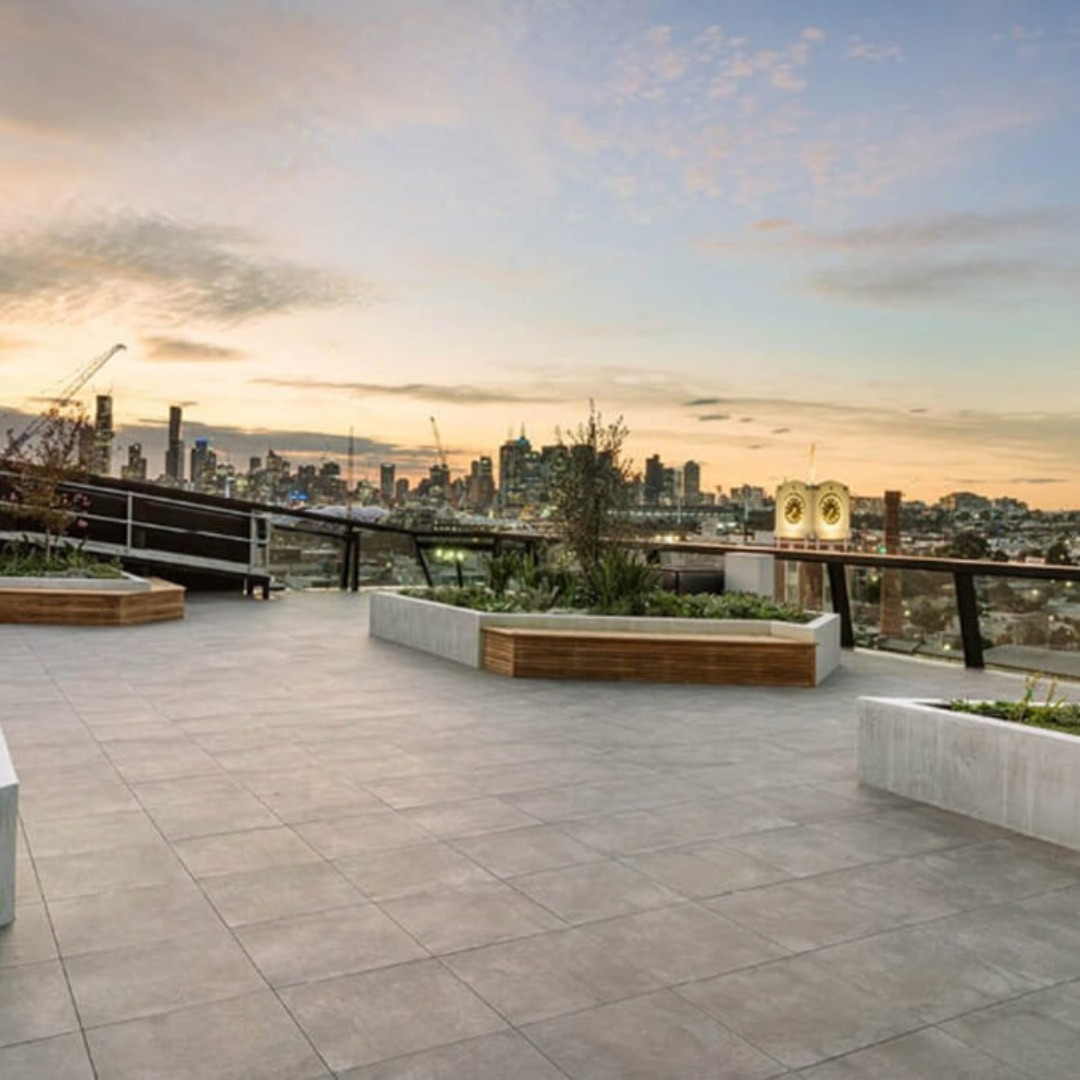

• Rooftop decks
• Raised patios and terraces
• Porcelain or stone paver systems
• Timber decking
• Pool decks
• Balconies and walkways
• Plazas and commercial outdoor areas
• Elevated exterior flooring systems

The NXT Pedestal system also allows access to the surface below, making maintenance of drainage, waterproofing, utilities, and other components easier.

Product Details

Height Range: 45–145mm
Height Range (Imperial): 1-3/4″–5-3/4″
Spacer: 5/32″ (4mm)
Carton: 36 pedestals
Color: Black
Manufacturer: LATICRETE
System: NXT® Pedestal System

Please Note: Pedestals should only be installed on clean, rigid, structurally sound substrates. Do not cut or install the pedestals upside down. Follow LATICRETE’s installation instructions for proper use.
